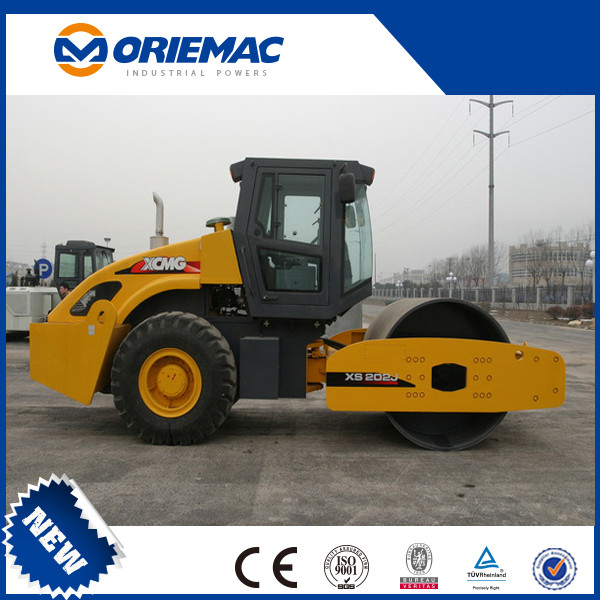

20 Ton XCMG Vibratory Compactor Roller Xs202j

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 50000/ Piece

Price:US $50000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Mar 27, 2014 To Jun 27, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XS202J

Type:Road Roller

Static Linear Pressure:470 N/Cm

Travel Speed:0-8.6km/H

Grade Ability:30

Power(W):128

Weight:20000kg

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude Packing

Standard:ISO

Origin:Jiangsu, China

Production Capacity:500/Month

Product Description

The XS202J/XS222J/XS222JE is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG's new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.

Streamline Design
The large arc frame structure and streamline engine hood design make the machine novel and visually attractive in appearance. Just one look, you can be sure the machine is from XCMG.

Excellent Powertrain
The six-cylinder, direct injection, water-cooled, turbocharged Shangchai D6114ZG engine that offers high power reserve, together with the electrically controlled power box and the optional drive axle with NO-SPIN function supplies stable power transmission. The power system of XS202J can play an optimal traction performance in any cases.

Outstanding Compaction
Dual vibration frequencies and dual amplitudes satisfy different jobsite requirements. Imported heavy-duty piston pumps and motors form a closed circuit to provide enhanced durability and reliability, ensuring uniform compaction. Largest diameter drum and highest static linear load of its kind in china coupled with optimized drum structure and vibration parameters work together for outstanding compaction result and great productivity.

Reliable Electrical System
The electrical system adopts internationally sourced water-proof, dust-proof, vibration-resistant electric connectors for increased reliability. Imported maintenance-free battery has high start-up current and good adaptability.

All-round Safety Consideration
Independently actuated caliper disc type service brakes and band type parking brakes assure safe and reliable braking. Ant-slip handrail and stairs allow the operator to get on and off the machine freely. During machine transportation, an articulated locking device can be used to lock the front and rear frame for safe transportation.

High Reliability
Advanced brake and clutch protection system protect the clutch and transmission against damages caused by operation mistakes. Integrating over forty years' experience in production, manufacturing and design, XCMG rollers have always been taking the lead in reliability in china's roller industry.
Comfortable Operation
Electrohydraulic controlled power shift transmission and electrically controlled engine hood make operation easy. The main clutch and braking system are air actuated, offering the ease of operation. Ergonomically designed instrument panel and simple ergonomic layout of controls minimize fatigue, making the operator highly efficient and productive.

Serviceability
Wide-opening tilt-forward engine hood can be stopped safely at any height using an electric lift device, allowing easy access to the engine for maintenance and service. Grease fill and drain ports are easily accessible for easier daily maintenance.

Item	Unit	XS202J
Operating weight	kg	20000
Weight on front drum	kg	10000
Static linear load	N/cm	470
Speed range	km/h
Speed I		2.63
Speed II		5.3
Speed III		8.6
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±10
Vibration frequency (high/low)	Hz	33/28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	353/245
Drum diameter	mm	1600
Drum width	mm	2130
Engine model		SC8D175.1G2B1
Rated power @2000 r/min	kW	128
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240
