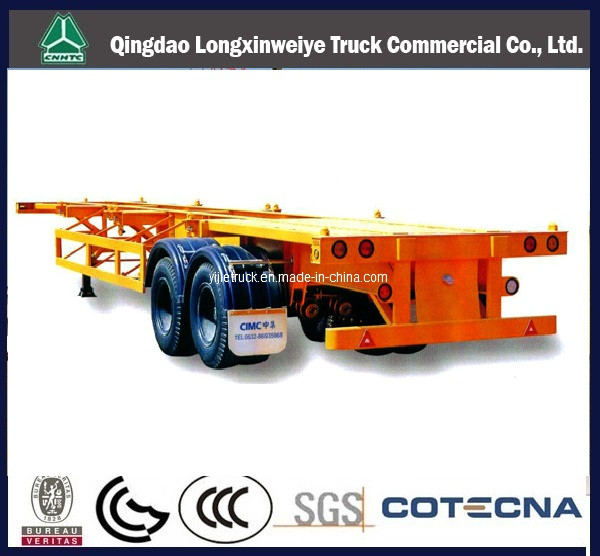

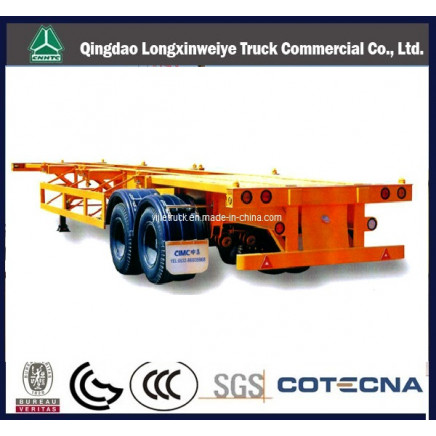

20" Skeleton Container Semi Trailer 2 Axles Capacity 30 Ton

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 9800/

Price:US $9800.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2015 To Apr 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZJV9400TDP

Type:Suspension

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:International standrad

Origin:Qingdao, Shandong

Production Capacity:600000units/Year

Product Description

20" Skeleton Container Semi Trailer 2 Axles Capacity 30 Ton
1. Iso 40', 20' container carrier
2. Double or three axle
3. FUWA 13T axle
4.11.00R20/12.00R20
Flatbed bed container semi-Trailer, Flatbed Semi Trailer, Container Semi Trailer, Semi Trailer, Semi-Trailer, Trailer and etc.
1. Tare Weight 6200kg
2. Payload 35000kg
3. Chassis: Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm, width 140mm.
4. Axle: 2/3 axles of Germany design 12ton, 13 ton, 16 ton axle optional upon choice
5. Brand Name: FUWA -optional BPW
6. Suspension: Germany design heavy duty mechanical suspension or air suspension optional upon choice
7. Floor: 3mm checker plate Leaf Spring Doll type Leaf spring
8. King Pin: JOST brand 2" Bolt-in King Pin
9. Landing Gear: JOST brand Two-speed, manual operating, heavy duty Wheel Rim 8.25-20, 9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice
10. Tyre: 11.00R20, 12.00R20, 11R22.5, 12R22.5 tire with one spare tire optional upon choice
11. Twist Lock: 12 nos. Of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. Spare Tire One set of spare tire including a carrier
12. Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
13. Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
14. Accessories One standard tool box

Chassis model/modele	ZJV9270TJZ The double axles container semi-trailer
Gross weight	27, 400KG
Tare weight	3400KG
Pay load	24000KG
External dimension(LWH)	720024801630(mm )
Tires	10.0-20, 11.00R20
The fifth wheel load	9450KG
