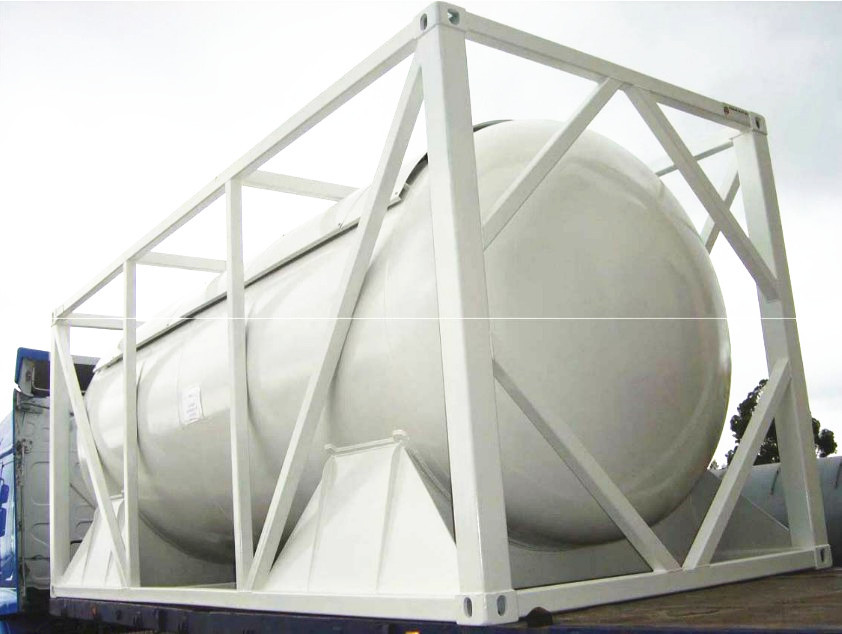

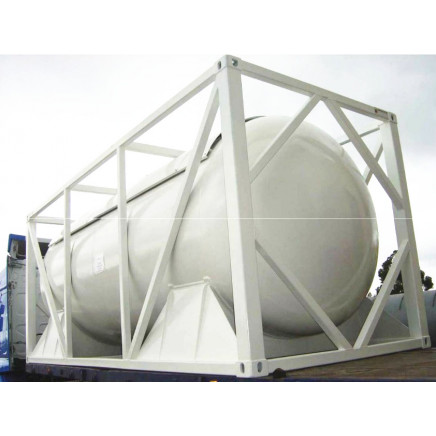

20 Feet LPG Tanker Container 40ft LPG Tanker Container

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 15999.0-18800.0/ Piece

Price:$15999.0 - $18800.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Mar 04, 2015 To Mar 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW945GYQ

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:0.1MPa?p<1.6MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Name:20ft LPG Tank Container 40ft LPG Tank Container

Tank Material:Mn Steel(Q345, Q370r)

R&D:CAD&Cae

Mechanical Property Test:Tensile, Strength, Impact Test

Effective Capacity(M3):95% Filled

Heating System:One Set, Hot Pipe Direct Heating, Twin Burner Tube

NDT:Mt Ut Rt 100% Perform for Pressure Vessels

Capacity:20000liters 25000liters 30000liters 35000liters 40

Internal Dimensions(L x W x H)(Mm):2150X13/14X11450

External Dimensions(L x W x H)(Mm):12191X2438X2591

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Contaienr

Standard:ISO CCC

Origin:Hubei, China (Mainland)

HS Code:73110090

Production Capacity:1000set/ Month

Product Description

LPG tank container brief detail:
1)Designing pressure:0.7~2.16Mpa Designing temperature:500C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
3)We inspect the quality of product strictly,ensure that A and Btype of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality ,its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on

China Famous 20 feet or 40 feet the LPG tank container

Item	Description	Specification	Remarks
1	Shape	Cylinder	20ft
2	Gross capacity(m3)
2	Effective capacity(m3)		95% filled
3	Outline dimension(mm)	6058x2438x2591
3	Internal Diameter(mm)	2300
4	Tare weight(kg)	5000
5	Insulation layer(mm)	50
6	The temperature down rate of the tank(°C/h)	?2
7	Seal off the head(mm)	6
8	Direct visual temperature meter	1
9	Temperature sensor	1
10	Maintenance manhole	1	Ø500 mm
11	The feeding hole of the asphalt	1	Ø250 mm
12	The protect frame of the feeding hole of the asphalt	one,800750200 mm	overflowing cofferdam
13	Breather valve	1
14	Pressure(MPa)	Less than 0.1
15	Asphalt Discharge valve	1	4?
16	Fast coupling	1	4?
17	Temperature	1	-19°C~200°C
18	Ladder	1	W=400mm
19	Heating system	One set, hot pipe direct heating, twin burner tubes	2 Groups
20	Diesel oil burner	2, 40x104Kcal	Optional
21	Automatic control system	Optional	Optional

Purpose
Tank containers series mainly used for transportation and storage of chemical liquid products
and oil products, because it can be stack up placced, so that, widely used in ware house, and other industries.

Advantages
Light self-weight, easy to clean, covering a wide range of goods, accessing to reliable, long life and easy
maintenance characteristics
Others
We produced the tank containers in accordance with the ISO standard design, in line with international maritime
standards.
Tank material according to different transportation medium can choose carbon steel, stainless steel, and insulation
and non-insulation tank.

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

If you are interested in our trucks, pls contact me, I will send our best quotation to you.
