20 Cubic Shacman D`Long F3000 6X4 Water Tank Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

20 Cubic Shacman D`Long F3000 6X4 Water Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$35000.0 - $40000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 40000/ Piece
10.0	US $ 38000/ Piece
20.0	US $ 35000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 30, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX1255

Volume:15001 - 30000L

Certification:ISO9000, CCC

Emission Standard:Euro 3

Sprinkling Area:?16m

Transmission Type:Manual

Payload:20T

Fuel:Diesel

Drive Wheel:6�4

Engine Capacity:6 - 8L

Engine Type:4 Stroke

Condition:New

Chassis Brand:Shacman D`Long F3000

Cabin:D`Long F3000 Half Row with A/C

Wheel Base:4575+1400mm

Engine:213kw / 290HP

Drive Axle:16ton Man

Gearbox:Fast,9-Speed

Tire:12.00r20

Tanker Capacity:20000L to 24000L

Tank Material:Carbon Steel Optional Stainless Steel

Thickness:5mm Tank

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

20000L 22000L 24000L TANK TRUCK
6X4 WATER TRUCK

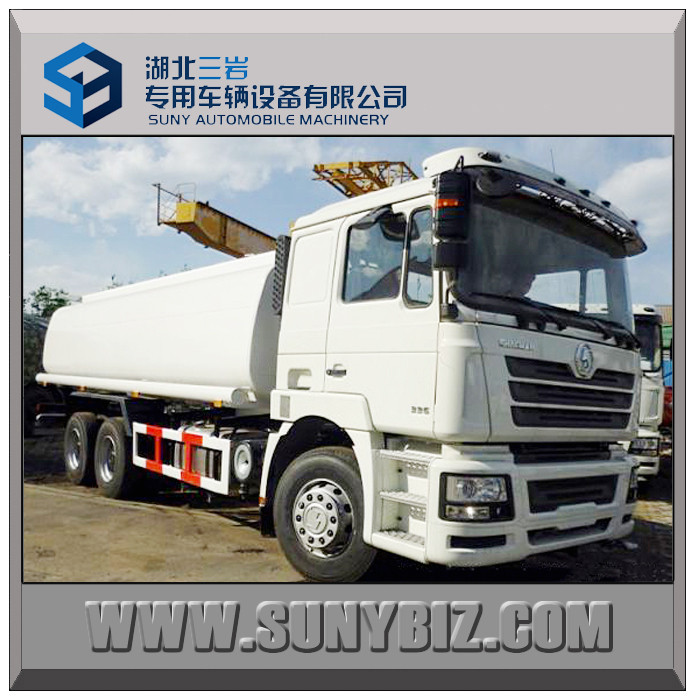

Shacman D`long F3000 6X4 WATER TANK TRUCK

Optional shacman 6x6 water truck, 4x2 water truck,4x4 water truck

Products Technical Specification
Product Name		Shacman 6x4 Water tank truck
Chassis Model		SX1255
Fuel type		Diesel
Cabin		D`long Half row with A/C
Whole Vehicle main dimensions (mm)	Overall dimensions (L�W�H)	1040025003560
	Tank dimensions	700022501500
	Wheel base	4575+1400
	Front overhang	1485
	Rear overhang	2875
	Min. ground clearance	400
Weight data (kg)	G.V.W	25000
	Curb weight (chassis)	10305
	Max payload	20000-30000
Whole vehicle main performance	Max. speed (km/h)	95
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	WP10.290E32
	Maximum power	213kw / 290hp
	Number of cylinders	6
	Displacement (L)	9.726
	Engine Manufacturer	Weichai Power Co., Ltd.
Gear box	Number of gears	FAST,9-Speed
Axle	Front /rear axle	7.5ton MAN / 16ton MAN
Suspension	Leaf spring	9/12,4/5,3/5,4/12,5/12
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Oil tank capacity		400L (Aluminum + fuel anti-theft alarm system)
Tyres & Quantity		12.00R20 & 10+1
Tank Description
Tank capacity		20,000L
Tank dimensions(mm)		700022501500
Tank Description		Shape: Square or Round
		Material: carbon steel
		Thickness: 5 mm
Standard Equipment		Equipped with water pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauzeequipped with self-flow valve, Fire coupling and self-priming pump with capacity of 60 cubic meters mph and working platform at back of truck

Other water tank trucks:

Drive Type	Tank capacity
4x2 4x4	1000L ~ 18000L
6x2 6x4 6x4	18000L ~ 25000L
8x2 8x4 8x8	26000L ~ 30000L
water tank trailer	30000L ~ 60000L
Many Chassis brands: Dongfeng,FOTON,FORLAND,FAW,SHACMAN,SINOTRUK,Beiben, IVECO HONGYAN,JAC,JMC,ISUZU,YUEJIN,KAMA,KARRY,T-KING, JINBEI,HINO,UD,etc.

We also have many brands of chassis
eg:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-100P-600P-700P
-HINO 700
-UD
................,etc.

If you have any questions please let Adam Li know!!!
