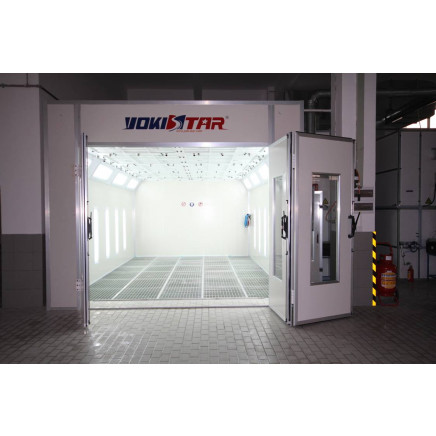

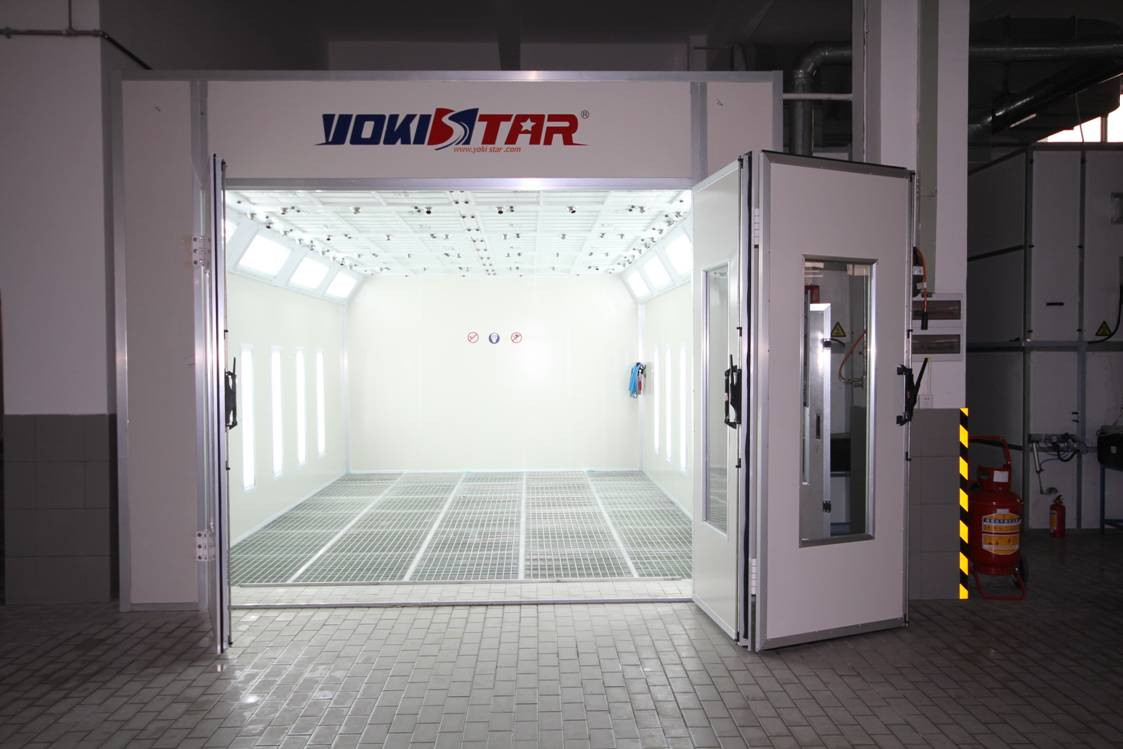

2 Year Warranty Water Based Paint Booth Equipment

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$20800.0 - $27040.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 20800/ Set
16640.0	US $ 27040/ Set

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Cash

Price Valid Time:From Apr 01, 2014 To Jul 01, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-70

Certification:CE

Airflow Direction:Full Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Full Downdraft Airflow Way

Air Inatake:2X4kw Double-Intake Centrifugal Fans

Air Exhaust:1X7.5kw Double-Intake Centrifugal Fan

Heating:Riello Rl28 Diesel Burner

Voltage:1X220V,3X380V,Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets.

Origin:Guangdong, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Model:YS-70
Inside dimention:6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.
with waterborne paint system

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products

High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

	YS-70
Inside dimension	6900в3900в2650 mmLвWвH
Outside dimension	7000в5550в3400 mmLвWвH
Main door	Folding door, 4 folds, 3500в2900 mmWвH, made by bending steel without cover frame, colour : blue.
Escape door	1 unit, 800в2000mm WвH, colour: white.
Basement	Galvanized steel assemble, 350mm high, with adjustable bolts, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 4 ramps, external setting, 900в2500mm/pc.
Wall Panels	Thickness: 50mm, width:1000mm, tongue and groove structure, 0.476mm colour steel with 50mm thick polystyrene (PU) insulation inside, colour: white.
Lighting	Ceiling Lights: 10Unitsв4Pcs=40Pcsв36W, with electronic ballasts, lighting boxes are powered coated. Side Lights: 14Unitsв4Pcs=56Pcsв36W, vertically set, with electronic ballasts, vertically set, lighting boxes are powered coated.
Generator setting	Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake and Exhaust air system	2в4KW double-intake centrifugal fans for intake air, motor outside, belt- drive, air capacity for each fan: 30000m3/h
Intake and Exhaust air system	1в7.5KW double-intake centrifugal fan for exhaust air, motor outside, belt drive, air capacity: 22500m3/h.
Heating system	RIELLO RL28diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 28000kcal/h.
Filtering system	Pre-filter, ceiling filter, fibreglass filter, activated carbon filter
Roof Plates	Galvanized steel
Control system	Power supply switch, emergency stop, fire safety valve, PLC combined with HMI control, inverters for motors.
Note	This model has waterborne paint system
