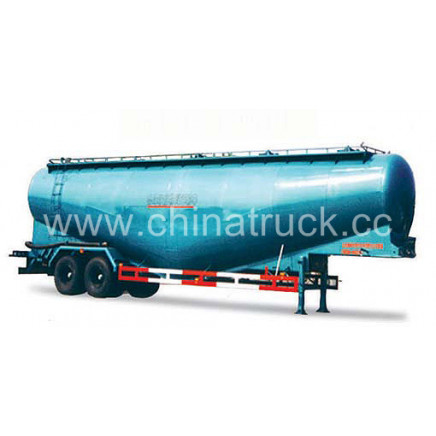

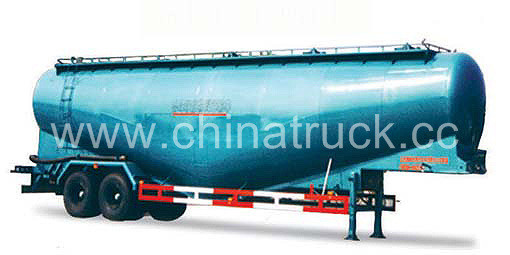

2 Axles Bulk Powder Goods Semitrailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, CIP, FCA

Payment Terms:L/C, T/T

Model NO.:2 Axles Bulk Powder Goods Semitrailer

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:2 Axles Bulk Powder Goods Semitrailer

Fuel:Diesel

Engine Type:4 Stroke

Certification:ISO9000

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Product Description

Dimension(mm): 12100x2495x3960
Length of tank(mm): 11475
Diameter of two ends(mm): 1815
Max. Diameter(mm): 2475
Pay load: 23000kgs
Front overhang(mm): 1300
Wheel base(mm): 7600+1305
Rear overhang(mm): 2645
Wheel thread(mm): 1840
Kerb weight: 11600kgs
Tire: 12.00-20 bias tire
Capacity(volume): 40CBM
Discharge speed(ton/min): >1.2
Discharge remain ratio: <0.3%
Spring: 11/11
King Pin: 90mm
Material Feed: 3
