2 Axles 20ft Container Transport Goose Neck Low Bed Semi Trailer Lowboy Semi Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

2 Axles 20ft Container Transport Goose Neck Low Bed Semi Trailer Lowboy Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$13600.0 - $13800.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 13800/ Piece
10.0	US $ 13600/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 23, 2015 To Oct 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PLY9400TDP

Type:Suspension

Load Capacity:30T

Certification:CE, ISO9001, CCC, SGS

Wheel Base:1310mm

Tread:1820mm

Grade:Medium Duty

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Double

Universal Joint Type:24V

Brake Pad Material:American

Towing Pin Type:2??or 3.5??

Towing Pin Diameter:50mm

Differential Gear Type:Auto

Independent Suspension Type:Mac Pherson Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:2

Tire Number:8

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Color:Depend on Your Need

Paint:Anti-Rust

Certifications:ISO/CCC/SGS/CQC/BV

Custom-Made:Available

Trade Mark:Phillaya

Place of Oringin:Qingdao Shandong

Guarantee Term:1 Year, Mainbeam Lifetime Promise

Lead Time:15 Working Days

Production Ability:150 Units Per Month

Export Markets:Global

Additional Info.

Trademark:Phillaya

Packing:Containers, Bulk Ship, Road

Standard:ISO CC SGS CQC BV

Origin:Qingdao City, Shandong Province, China

HS Code:871639900

Production Capacity:150 Units Per Month

Product Description

Product Description:

FUNCTIONS:

1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction
or logistic companies, such as excavator, digger, mover, crane, and building materials.
2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it according
to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension,
etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic
spring ladders and hydraulic loading ramps by different needs
NOTICE:
1.More than 10 years manufacturer of all kinds of semi trailers in China;
2.Customized by your specific requirements;
3.Small order is accepted;
4.One year warranty for all configurations and life-time for main beam.

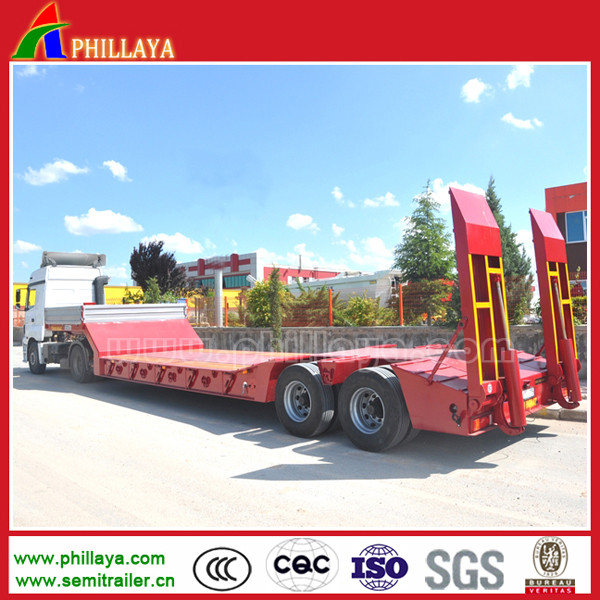

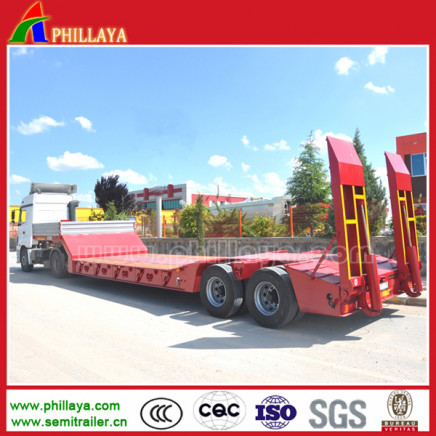

2 Axles 20ft container transport Goose Neck Low Bed Semi Trailer Lowboy Semi Trailer

2 AXLES LOWBED SEMI TRAILER (30-80T SERIES)
Brand Name	Phillaya
Model Number	PLY9400TDP
Place of Origin	Shangdong province, China
Color	Any color will be availacble
Rated Load	30-80Tons
Tare Weight	7500kg
Wheel Base	1310 (mm)
Tyre Specifications	10.00R20
No. Of the Tyres	8
Axle Brand	13Tonnage X FUWA Brand
No. Of the Axles	2
Pieces of leaf-spring	10
Suspension	Heavy Duty Leaf Spring
Front/Rear Overhang	1950 mm
Floor	3mm management plate
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Main Beam Material	Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm, Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm
Brake Air Chamber	Four double and two single chamber
Outside Dimensions (LxWxH)	12500x2500x1500 (mm) (Other Dimension Optional)
Electrical System	24V, 7core socket, lights according to European standards.
Usage	For heavy duty machine, as transformer, crane, excavator transportation.
Brake System	Dual Lines Braking System With Automatic Air Chambers
Color and Logo	Depends on the buyer's requirement.
The traction pin	2' & 3.5' inter-changeable
Pin Height	According to the height of the tractor saddle.

BRIEF INTRODUCTION TO OUR FACTORY:
Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the
professional experience more than 15 years, certified by the Chinese governmentmanufacture,
Majored in semi trailer, special vehicle manufacture, our products are mainly
exported to Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia,
Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries.
SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
1.CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs
DEALING PROCESS:
1. Send us inquiries on your desired product / model through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturing process updated news.
9. Production completion.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.
WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT.

WISH THE LONG-NEW MUTUAL BENEFIT & BUSINESS RELATIONSHIP CAN BE BUILT BY OUR JOINT EFFORTS !!!
