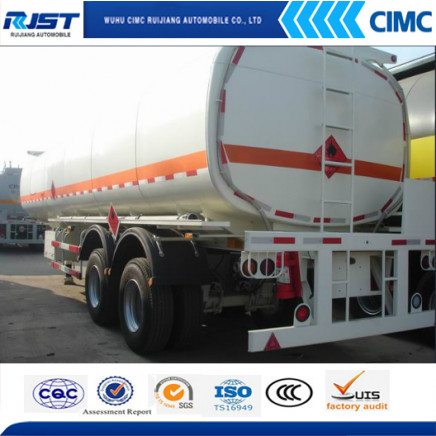

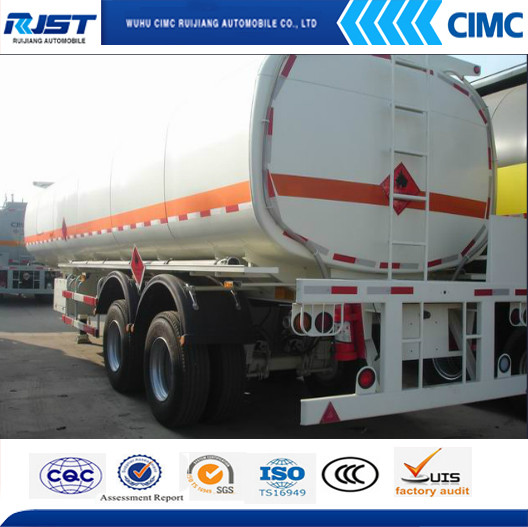

2 Axle Fuel Tank Semi Trailer/Oil Tank (WL9403GYY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$18900.0 - $22000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 22000/ Piece
5.0	US $ 18900/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From May 06, 2015 To Aug 06, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9403GYY

Transmission Type:Manual

Power:Diesel

Emission Standard:Euro 3

Tank Volume:?30000L

Drive Wheel:8×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:6-8L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Tubeless

Condition:New

Capacity:42m3

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude

Origin:China Anhui Wuhu

HS Code:87163110

Production Capacity:2000units/Year

Product Description

Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 30, 000 units per year.

Please contact us to know more.

42m3 Fuel Tank Semi-trailer with Three Axles
Parameter	Dimension(mm)	1150024803600
	Tank Thickness	5mm
	Bulkhead Thickness	5mm
	Baffle Thickness	4mm
OEM	Landing Gear	28T Baohua
	King Pin	90#,assembled
	Axle	2 units,14T BPW
	Suspension	mechanical suspension
	Tire	8 units,12R22.5
	Rim	8 units,8.5-22.5
	Emergency Valve	one 3''stainless steel
	Ball Valve	one 3''carbon steel
	ABS	4S/2M
Electrical	Voltage	24 volt
	Receptacle	7 way
	Front Marker Lamp	White
	Side Marker Lamp	White and Red
	Rear Lamp	Red
	Turn Signal Lamp	Amber
Others	Fire Extinguisher	2 units
	Tool Box	1 unit,0.8m
	Spare Tire Carrier	2 units
