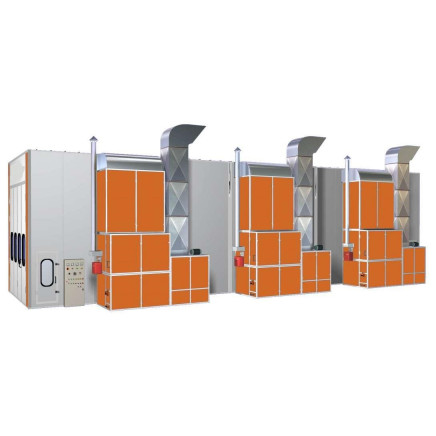

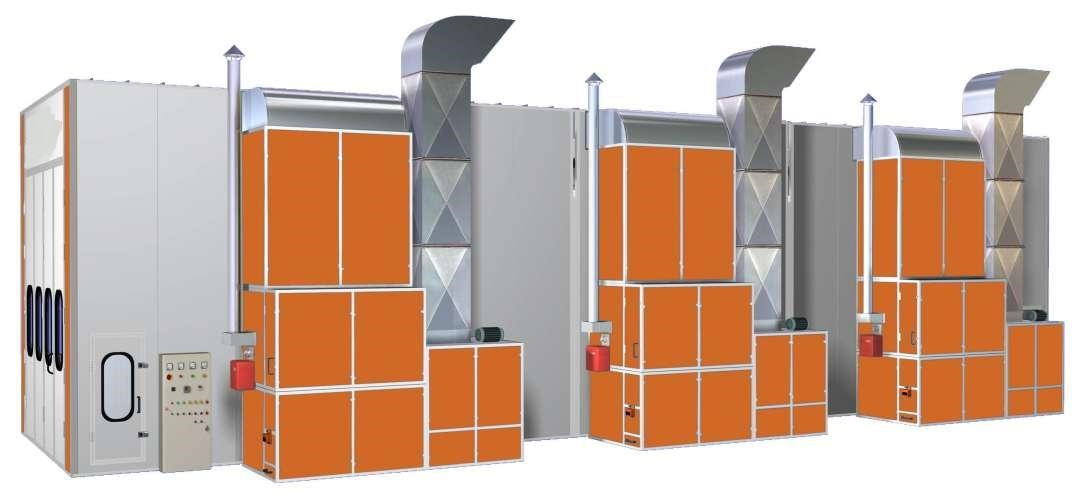

18m Bus Spray Booth

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

18m Bus Spray Booth

More Views

18m Bus Spray Booth

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 20000/ Set

Price:US $20000.0 / Set

Trade Terms: FOB, CFR, EXW, CIF, DAT, CIP

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jan 27, 2014 To Apr 26, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CPYE18 001

Airflow Direction:Cross-flow Type

Heating Mode:Used Oil

Paint Mist Treatment:Dry-type

Condition:New

Export Markets:Global

Additional Info.

Trademark:Captain /OEM

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE, SGS

Origin:Jiangsu, China.

Production Capacity:30sets/Month

Product Description

Quick Details

Type:Spray BoothsPower:52kwExternal Size:18156x7516x5850 mm

Internal Size:18000x6000x5000 mmVoltage:220/380v 50HZ

Outside Size:(mm)

18156x7516x5800

Front Door:(mm)

4100(w)x4500(h)

Inside Size:(mm)

18000x6000x5000

Total Power:(kw)

Cabin System

Wallboard

EPS (epispastics polystyrene)Colorful Steel Skin Boards,75mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame ,Anti-flame and Heat-Insulation with the strong support of powder coated pillars inbetween.

Basement

Two rows of pits with galvanized duty-bearing grids for air sucking

Air Circulation System

Inhaling

Ventilator

Type&Model:

YDW-5.6M

Exhaust Ventilator

Type&Model:

4-82-6.3E

Blower Capacity: 21000m3/h

Blower Capacity: 35000m3/h

Pressure: 800Pa

Rolling Speed: 900rpm

Power: 7.5kw

Power: 15kw

Quantity: 6 sets

Quantity: 3 sets

Air Volume: 12000m3/h; Air Speed: 0.31m/s

Air Purification System

Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ?m. Inflammable Ceiling Filter Capture Granules Bigger than 4?m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP?1.4mg/m3

Heating System

Burner

Italy Riello Brand,RG5S Diesel Burner x 3 Sets, 260000Kcal/h, 20N Damp Motor

Heat Energy Converter

SUS304 Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%

Max Temp:80.C, Heating Time: 15-20min(20-60�C), Fuel Consumption: 10-12kg/vehicle

Light System

Ceiling Light: 112 pcs 36w Philips Lamp; Side Light: 60 pcs 36w Philips Lamp, 900 Lux,

Electric Controlling System

Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer

Environmental System

Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
