18000L Sinotruk Jinwangzi 6X4 Water Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$25000.0 - $35000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 35000/ Piece
20.0	US $ 30000/ Piece
50.0	US $ 25000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 02, 2015 To Dec 30, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ1251M

Volume:15001 - 30000L

Certification:ISO9000, CCC

Emission Standard:Euro 2

Sprinkling Area:?16m

Transmission Type:Manual

Payload:20T

Fuel:Diesel

Drive Wheel:6�4

Engine Capacity:?8L

Engine Type:4 Stroke

Condition:New

Chassis Brand:Sinotruk Jinwangzi

Cabin:Man L2000 Half Row with A/C, One Sleeper

Wheel Base:4350+1350mm

Cummins Engine:196kw / 266HP

Drive Axle:Hw1279

Gearbox:10 Forward Gears & 2 Reverse

Tire:11.00-20

Tanker Capacity:15000L to 20000L

Tank Material:Carbon Steel Optional Stainless Steel

Thickness:5mm Tank

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

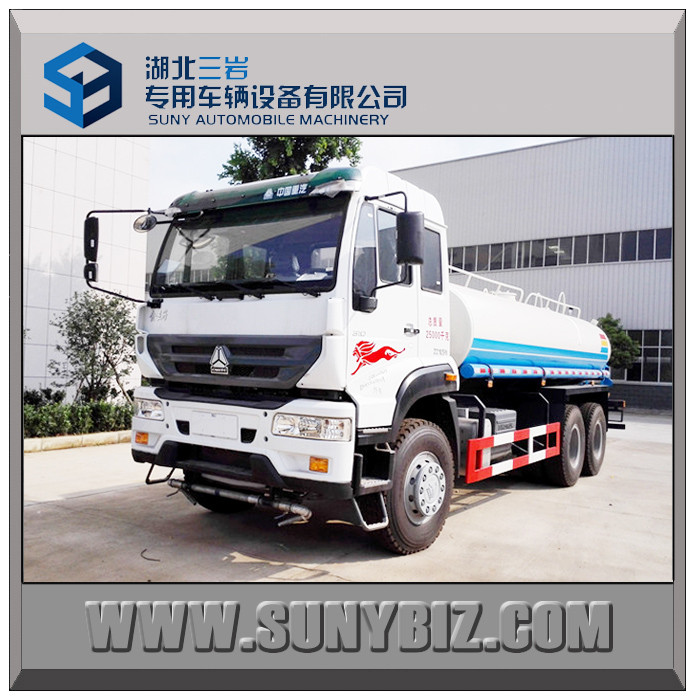

SINOTRUK JinWangZi 6x4 Water Sprinkler tanker Truck
18 cubic / 18000L Water Tank Truck
Man L2000 Half row cabin,6x4 drive type,10-speed gearbox,CNHTC SINOTRUK 226hp engine.
Equipped water pump,Water spraying equipment(Sprinkler gun,etc)

Other water tank trucks:

Drive Type	Tank capacity
4x2 4x4	1000L ~ 18000L
6x2 6x4 6x4	18000L ~ 25000L
8x2 8x4 8x8	26000L ~ 30000L
water tank trailer	30000L ~ 60000L

We also have many brands of chassis
eg:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-ISUZU,100P-600P-700P
-HINO 700
-UD
-C&C
-CAMC
................,etc.

Products Technical Specification
Product Name		Sinotruk Jinwangzi 6*4 Water Tank Truck
Chassis Model		ZZ1251M
Fuel type		Diesel
Emission Standard		Euro 2
Cabin		Man L2000 Half row,With A/C
Whole Vehicle main dimensions (mm)	Overall dimensions (L�W�H)	959724953070
	Tank dimensions	670023401500
	Wheel base	4350+1350
	Front overhang	1320
	Rear overhang	2775
	Min. ground clearance	540
Weight data (kg)	G.V.W	24980
	Curb weight (chassis)	12400
	Max payload	20000-30000
Whole vehicle main performance	Max. speed (km/h)	90
Whole vehicle main performance	Max. slope of climb (%)	35
Engine	Model	WD615.62
	Maximum power	196kw / 266hp
	Number of cylinders	6
	Displacement (L)	9.726
	Engine Manufacturer	China Heavy Duty Truck Group Co., Ltd.
Gear box	Model	HW15710
Gear box	Number of gears	10 forward gears & 2 reverse
Axle	Front Load capacity (ton)	HF7
Axle	Rear Load capacity (ton)	HW1279
Suspension	Front	12- Leaf spring
Suspension	Rear	12-leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres & Quantity		11.00-20 & 10+1
Tank Description
Tank capacity	/	18000L
Tank dimensions(mm)	/	670023401500
Tank Description	/	Shape: Square
	/	Material: carbon steel
	/	Thickness: 5 mm
	All water truck can be make water wagon for transporting drinking water
Standard Equipment	Equipped with water pump(suction lift>6m)Equipped with fire valve, water valve, and filter gauzeequipped with self-flow valve, Fire coupling and self-priming pump with capacity of 60 cubic meters mph and working platform at back of truck

A.We also have sinotruck water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

B.Other brand of Chassis
eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,KARRY,CNJ,T-KING,UD,HINO,ISUZU,CAMC,C&C,etc.

C.Product Series
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

D,Packaging & Shipping:
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

E:Customer service:
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 12 months warranty.
We supply quick-wear parts and spare parts in time for customer.
