170 Degree Angle Car Rear View Digital Camera for Car CCTV System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:BRVISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BR-MNC08

Shell Material:Alloy

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Waterproof

Definition:420TVL

Chip:CCD

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Probe Diameter:24mm

Place of Origin:Guangdong China (Mainland)

Brand Name:Brvision

Type:Reverse Camera

Sensor:CCD

Special Features:Waterproof

Power Input:12V DC

TV Line:480 Tvl

Export Markets:North America, South America, Eastern Europe

Additional Info.

Trademark:BRVISION

Packing:Custormize Package

Standard:, RoHS, CCE, EMARK

Origin:Shenzhen(Guangdong)

Production Capacity:2000/Week

Product Description

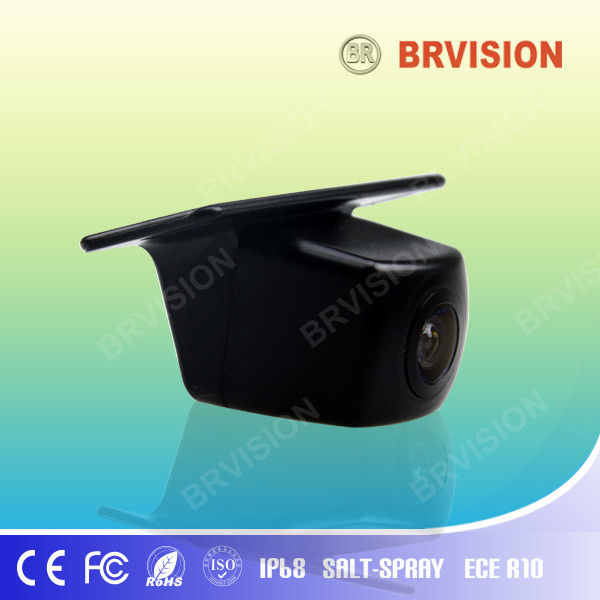

170 Degree Angle Car Rear View Digital Camera for car cctv system

1. Brief Introduction:
- Universal car rear view camera,
- 1/4" CMOS color sensor,
- 170° view angle,
- 12V DC power input

2. Certificate:
- CE, FCC, Emark, ISO9001-2008

3. Quality Control:
- Ageing Test
- Waterproof Test
- Salt-spray Test
- Viberation Test
- Cable Swing Test
- High Pressure Immersion Water Test
- High Low Temperature Testing: -20C°-70C°

4. Key Specification:
- Image Device: 1/4" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof: IP68
- Vibration Rate: 10G
- Resolution: 420TV lines
- 1.8mm waterproof lens
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -30~+80°(RH95%MAX.)
