16m 3 Axles Gooseneck Low-Bed Semi-Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

16m 3 Axles Gooseneck Low-Bed Semi-Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 23000/ Piece

Price:US $23000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 20, 2015 To Oct 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9280TD

Type:Towing Pin

Load Capacity:80T

Certification:ISO9001, CCC

Wheel Base:9000-10000mm

Tread:2240mm

Grade:Heavy Duty

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:No ABS Anti-lock Braking System

Material:Steel

Condition:New

Size:as Your Requirements

Colour:Option

Export Markets:Africa, Oceania, Mid East

Additional Info.

Trademark:JUPITER

Packing:Nude

Standard:ISO9001; ccc

Origin:Jiangsu, China (Mainland)

Production Capacity:150PCS/Month

Product Description

16m Three-Axle Heavy Duty Lowbed Flat Panel Semi Trailer

1, for large scale products' transportation such as wheel loader, trucks, crane and so on
2, high-tensile steel with strong load capacity
3, low loading surface, can load with extreme high goods
4, hydraulic ramp is available
5, can designed according customer's requirement

Dimensions: 9500*12500*13000mm
Tare Weight: 8500kg
Payload: 45000kg
Wheel track:1840mm

STANDARD SPECIFICATION OF HEAVY DUTY LOWBED FLAT PANEL SEMI TRAILER

Main Frame of Heavy Duty Lowbed Flat Panel Semi Trailer: Heavy duty and extra durability designed, opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.

1)Thickness:
You can have your own thickness.

2)Axle
Three Units German or American Style axle

3)Suspension
A couple of FUWA(Brand) mechanical 3-axle suspension, other brands are available.

4)Leaf Spring
Six sets of reliable local brand, 8 pieces leaf spring, 16X90mm, or we follow your requirements

5) King Pin
One unit of 2 Inch standard welded kingpin

6) Landing Gear
Two-speed, manually operating, heavy duty landing leg

7)Wheel Rim
Thirteen units of 8.25*22.5 rim or as your request

8)Tyre
Thirteen units of 11R22.5 Tubeless tyre or as your request

9)ABS
Available

10)Spare Wheel Carrier
One set of spare wheel carrier including a riser.

11)Pneumatic Braking System
Two unit of WABCO RE 6 relay valve; Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, Two unit of reliable local brand 40L air tank; Two units of reliable local brand standard coppery air-connector.

12)Electrical System
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set of DAFA(brand ) 6-pin standard Cable.

13)Painting Sand blasting processing clean rust
1. Coat of anticorrosive primer
2. Coats of finish urethane paint
3. Color as customer choice

14)Accessory
One tooling box with whole set of standard trailer tool

15)FAQ:
1. Why we are a trading company
Answer: We are a group company, we have have semi trailer factories in Guangdong province, Fujian province and Jiangsu province and we are growing fast these years so our head quarter to build this trading company to focus and in charge of the international market to make us more professional.
2. Why choose us
Answer: Because we put more intention on the quality and can provide stable quality semi trailers.

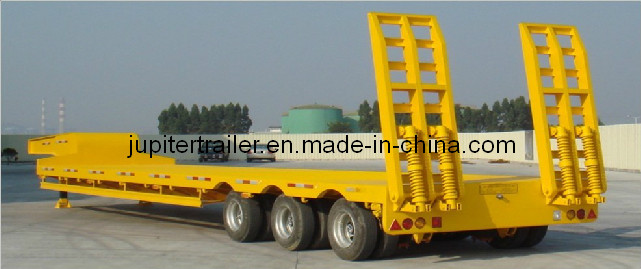

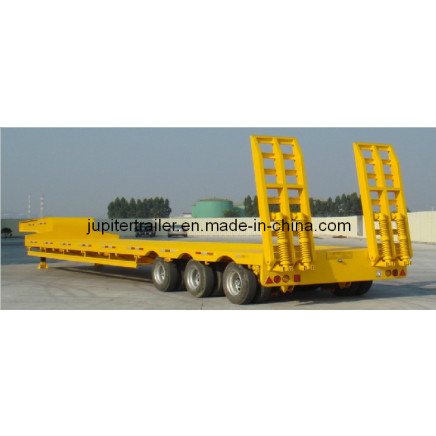

16)Pictures as below to refer
