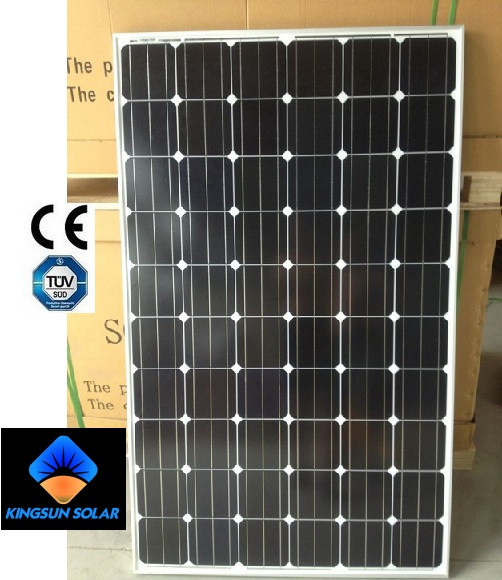

160W Monocrystalline Solar Power Panel Modules

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.8 - $1.01 / Watts

Min. Order (pcs)	Unit Price
50.0	US $ 1.01/
200.0	US $ 0.9/
1000.0	US $ 0.8/

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From May 11, 2015 To Aug 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSM-160

Material:Monocrystalline Silicon

Size:1328*808*40mm

Front Glass:Low Iron High Transmisson,Tempered Glass

Weight:13kg

Size of Cell:125*125mm

No. of Cells:6*10

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Eastern Asia, Western Europe

Additional Info.

Trademark:KingSun

Packing:Standard Export Carton Packaging

Standard:KSM-160W

Origin:Nanjing China

HS Code:85414020

Production Capacity:8MW/Month

Product Description

160W Mono-crystalline Silicon Solar Panel

Structure of Solar Panel:

1. Front Material: 3.2MM low-iron toughened glass
2. Back Material: White TPT\TPE
3. Bondable Barrier Film: EVA
4. Frame: Aluminum alloy plated with oxidation film <
5. The warranty of a standard about 25 years/ 80% efficiency on maximum output <
10 years / 90% efficiency on maximum and 5 years warranty on workmanship <
6. Module size can be changed according to the customers' requirement <
7. Standard testing conditions: Am1.5 25º C 1000W/m2 <

EFFICIENCY

Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability

BENEFITS

Manufactured in an ISO 9001: 2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship

KINGSUN'S ADVANTAGES

1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC, TUV, and CE approval, offering the full spectrum sizes, solar panels are as efficient as other competitors, but far cheaper-without skimping on quality.

Components & Mechanical Data

Junction Box in proof-water with TUV Certificate
Bypass Diode Rated 15A
Solar Cable & Connector: 4 m² With MC4 connector with TUV Certificate

1. Toughed Glass: The glass is super white cloth grain of toughened glass, the thickness of 3.2mm, the solar cell spectral response range of wavelengths (320-1100 nm), light transmittance over 91%, Ultraviolet light radiation, light transmittance is not falling. Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.
2. EVA: 0.5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass, TPT agent. With high light transmittance and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
Light transmittance is greater than 90%; Crosslinking degree is more than 65-85%; Peel strength (N/cm), glass/film is more than 30; TPT/film is more than 15; Temperature resistance, high temperature 85° C, low temperature - 40° C.,
3. TPT Back-Sheet: The back of the solar panel, ageing resistance, corrosion resistance, resistance to ultraviolet radiation, airtight, etc. Basic requirements.
4. Frame: Aluminum alloy frame with high intensit, mechanical shock resistance ability

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.

Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature
Operating Temperature: -40 ~ +85° C
Storage Temperature: -40 ~ +85°

Solar modules can be designed according to client' s specific requirements.

Pictures

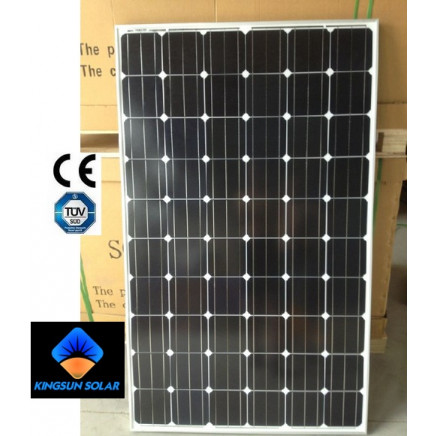

160W Monocrystalline Solar Power Panel Modules

No.	Descriptions and Specifications
1	Peak Power (Pm)	160W
2	Efficiency	17.10%
3	Power Tolerance	±3%
4	Open Circuit Voltatge (VOC)	36.20
5	Short Circuit Current (ISC)	6.08
6	Maximum Power Voltage (Vmp)	30.20
7	Maximum Power Current (Imp)	5.30
8	Size of Module	1328×808×35mm
9	Cell Type	Monocrystalline, Type M
10	Quantity and Dimension of Cell	60(6x10)mono soalr cells,125×125mm
11	Glass type and Thickness	Low iron tempered 3.2mm
12	Weight	13kg
