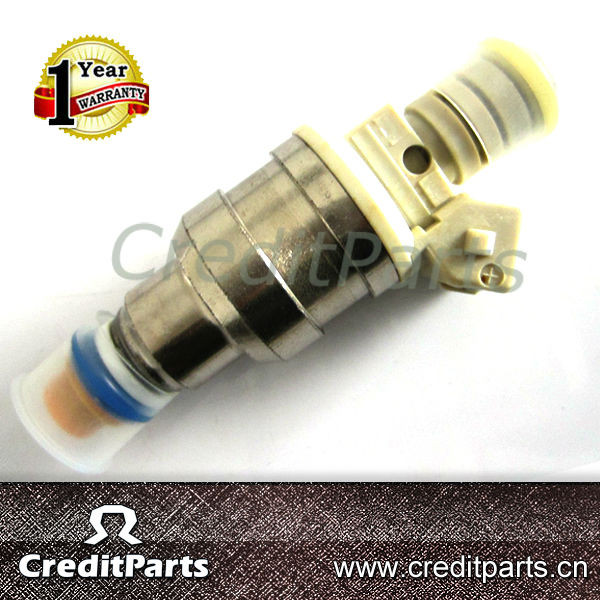

1600 CC/Min Low Impedance Fuel Injectors 0280150846 for Mazda Rx7

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB

Payment Terms:T/T, Paypal, Western Union

Trademark:CRDT

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:0280150846

Export Markets:Global

Additional Info.

Trademark:CRDT

Packing:Boxes and Cartons Packing, Carton

Origin:China

Production Capacity:50000 Piece/Pieces Per Month

Product Description

Supply wide range of fuel injectors to worldwide market,
Bosch Part Number 0280155968
Volvo Part Number 9202100

Supply wide range of fuel injectors to worldwide market,
Applications:
Volvo & many European makes
Many Japanese makes
Made for high pressure, harsh environment turbo & supercharged applications
Made for Audi, VW forced-air induction 6 cylinder engines.

Static Flow Rate: 42lb/hr @ 43.5PSI = 440 CC/min (+/-2%)
Coil Resistance: 12.0 Ohms (+/-0.35 Ohms) / High Impedance / High-Z (No ECM driver modifications required)
Physical Dimensions: EV6 Body Type
Electrical connector type: EV1 (minitimer)

Injector Body Design: Metal and composite plastic
Fuel Delivery: 4-hole disc
Length: 3 inches, 74 mm

Diameter: 16 mm
O-rings: Top and bottom, 14.5 mm
Filter basket on top with a four-hole disc fuel delivery nozzle for superior fuel atomization.

(All fuel injector specifications meet or exceed the manufacturer's specification standard).

User Note: The Bosch 0280155968 is a highly efficient fuel injector that incorporates a split/wide-cone fuel delivery. Use in engines with single- and multi-intake valves.
(Actual bench flow-test indicates 42.9lbs/hr (450CC) at 3 bar).

MFG guarantees 2-3% flow-matching.
