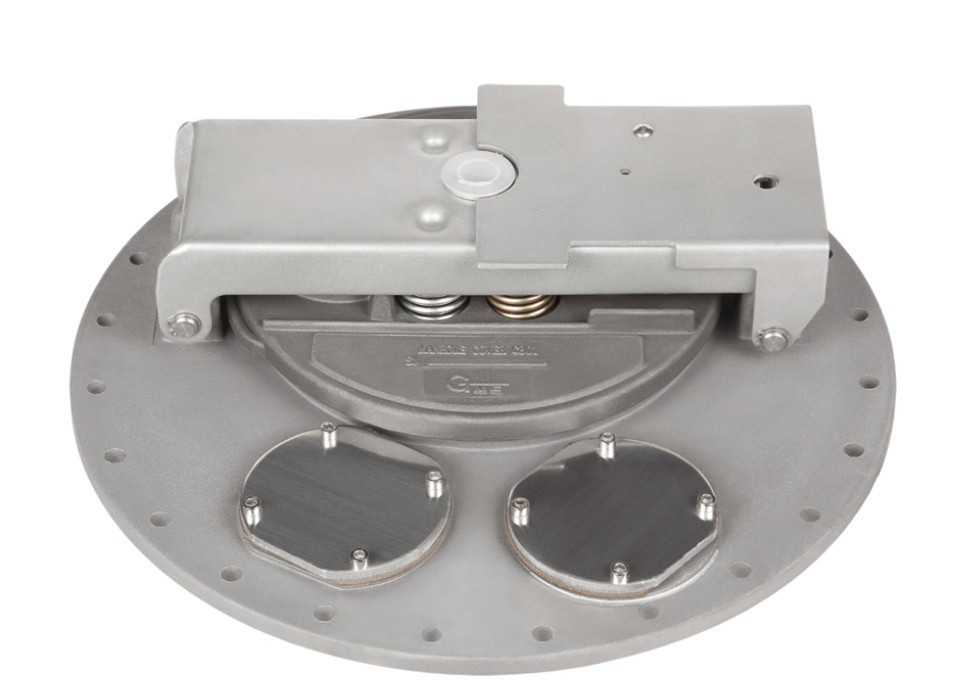

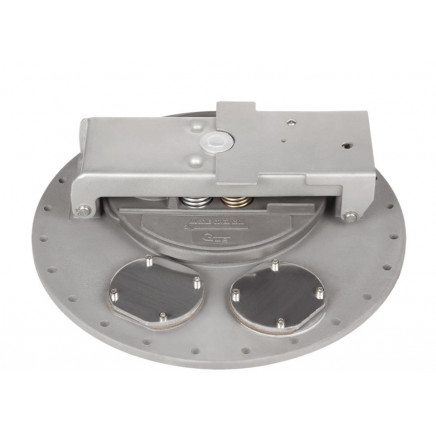

16'' Aluminum Manhole Cover Top Cover Tank Truck Parts

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 140.0-365.0/ Piece

Price:$140.0 - $365.0 / Piece

Trade Terms: FOB, CFR

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Nov 25, 2014 To Feb 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:C801A-460

Surface Treatment:Polishing

Certification:SGS, ISO 9001:2008

Max Emergency Flow Rate:7000m3/H(When 34kpa)

Installment Mode:Flanged Type

Temperature Range:-20~ +70 .

Components:Manhole Cover

Export Markets:Global

Additional Info.

Trademark:JIALONG

Packing:Box 2 Set/CTN Size: 47*29.5*52 G. W.: 23.5kgs

Standard:API certificate

Origin:Wenzhou, Zhejiang, China

Production Capacity:3000 Sets/Month

Product Description

Specifications

1. Whole diameter: 16"
2. Nominal diameter: 10"
3. Emergency open pressure: 21kpa -32kpa
4. Material: Aluminum alloy

1. Manhole Cover

Jialong Manhole Cover is installed on the top of the tanker to prevent the inside fuel from leakage when the tanker is over rolled. With P/V vent inside to adjust the pressure. When there is pressure differences inside and outside the tanker, it will automatically inlet or exhaust air to adjust the pressure so that it can ensure the safety and environment protection. It is suitable to transpore petroleum, diesel, kerosene, and the other light fuel, etc.

2. Benefit & Feature

* Emergency Exhausting Design
When the tanker truck is in high temperature condition, the manhole will automatically exhaust the air inside to release the pressure, ensuring the safety of the tanker.

* With P/V Vent inside
When there is pressure differences inside and outside the tanker, it will automatically inlet or exhaust air to adjust the pressure so that it can ensure the safety and environmental preotection.

* Secondary Open Design
When open the up binder plate, it will release the pressure out to prevent the workers from pushing over.

* Blinding Holes Design
In the main plate of the Manhole, there are two blinding holes can be installed with Vapor Vent Valve, Optic Sensor, DIP Tube or Exernal Vacuum Valve according to the user's demand.

* Larger Angle Opening
The new designed blinder plate can make the cat hole opening's angle larger than the old one.

3. Installation drawings
