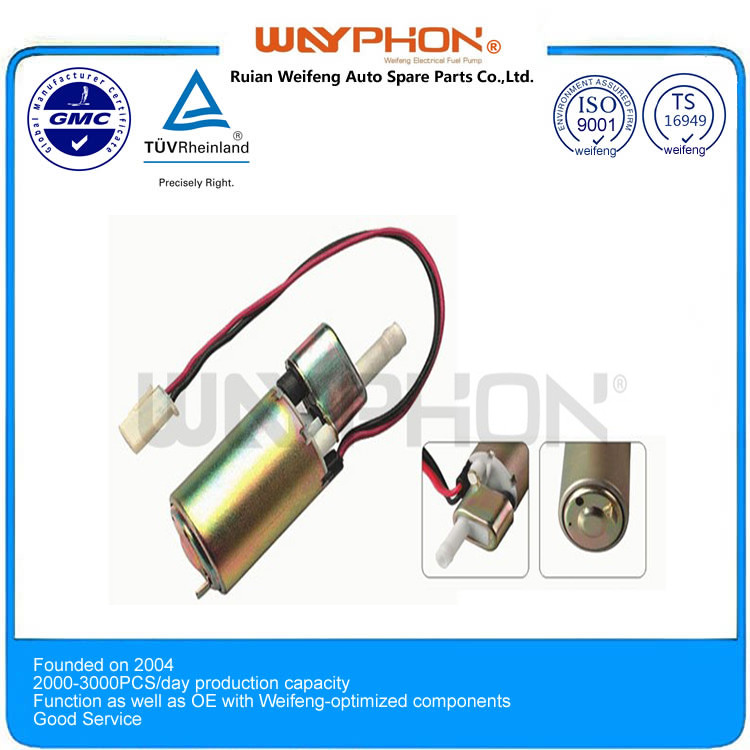

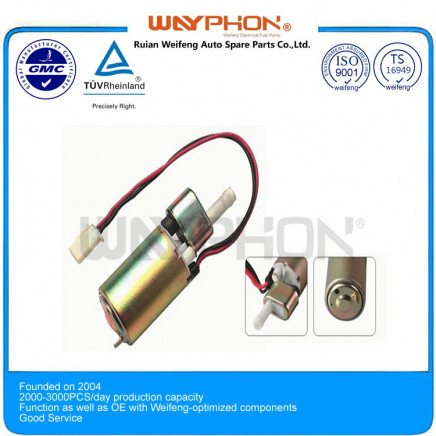

15110-63b00 Am16-13-305b Electric Fuel Pump for Suzuki Mitsubishi

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$3.1 - $4.3 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 4.3/ Piece
500.0	US $ 3.1/ Piece

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Jun 04, 2014 To Sep 29, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WF-3401

Fuel:Electric

Body Material:Iron

Component:Fuel Injection Device

Certification:ISO9001, TS16949

Stroke:4 Stroke

Cylinder:Multi-cylinder

Diamater:34mm

Size:107mm

Lenthe of The Body Skin:50mm

Pressure:0.1bar

Current:1.5A

Wide Open Flow:80L/H

Volts:12

Shutt-off Pressure:0.3-05bar

Current of Shutt-off Pressure:3.5A

Car Series:Japanese Car

Export Markets:Global

Additional Info.

Trademark:WAYPHON

Packing:Neutral Packing/Brand Packing

Standard:ISO/TS16949

Origin:China

Production Capacity:1000000PCS/Year

Product Description

Key Specification

1.Weifeng Information
1).founded in 2004 with 6 million registered capital
2).professional production equipment ,such as CNC lathe,punching machine,coiling machine,precision machine,dynamic balancing machine and so on.
3).WEIFENG has more than 5 person for research and development,10 technical person for after sales that includes 5 person work in overseas all year round.
4).have passed ISO9001:2008, ISO/TS 16949 and GMC
5).Our products are well sold in the US,Brazil,Southeast Asia,the Middle East,Russia,etc.

2.Technical date:

Pessure
0.1BARCurrent
<=1.5AWide Open Flow
>=80L/HVolts
12VShutt-off Pressure
0.3-0.5BARCurrent of Shutt-off Pressure
<=3.5A

Diameter: 34mm
Size: 106mm
Length of The Body Skin: 50mm
Interchange: SUZUKI:15110-63B00, 15110-63B01,15110-63810,15110-63810-000,
15110-63B00-000,15110-63B01-000;
OE:40 29416 025229;AM16-13-305B,PVC-02S13621

Application: SUZUKI-SWIFT II HATCHBACK(EA,MA)1.0(SF310,AA44)-1.0L1989-2001;
SUZUKI-SWIFT II HATCHBACK(EA,MA)1.3(SF413,AB35)-1.3L1989-2001;
MTSUBISHI-LANCER;
MTSUBISHI-3H6/V31/V33

Any question, pls feel free to contact me

Type:	Fuel Pump
Packing:	Carton packing or as customers request.
Delivery:	Variety of delivery methods and Timely delivery time
Delivery time	30-35days
Delivery Port	Ningbo/Shanghai/Guangzhou
Payment Terms	T/T
Sale Methods:	Export, Manufacture, Wholesale, ODM, Service
Material:	COPPER, STEEL, MAGNET
Primary Competitive Advantages:	1. Competitive price and high qualitydesign 2.Standard and clever design 3. Long performence life 4. Various model numbers
Business scope:	Special item: Electric Fuel Pump,Electric PumpNormal item: Fliter,Sensor,Mechanical Pump, Auto Wire setImport&export business
Quality Certificate	ISO/TS16949,GMC.TUV
