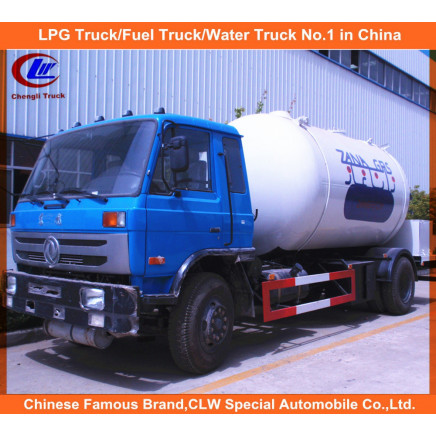

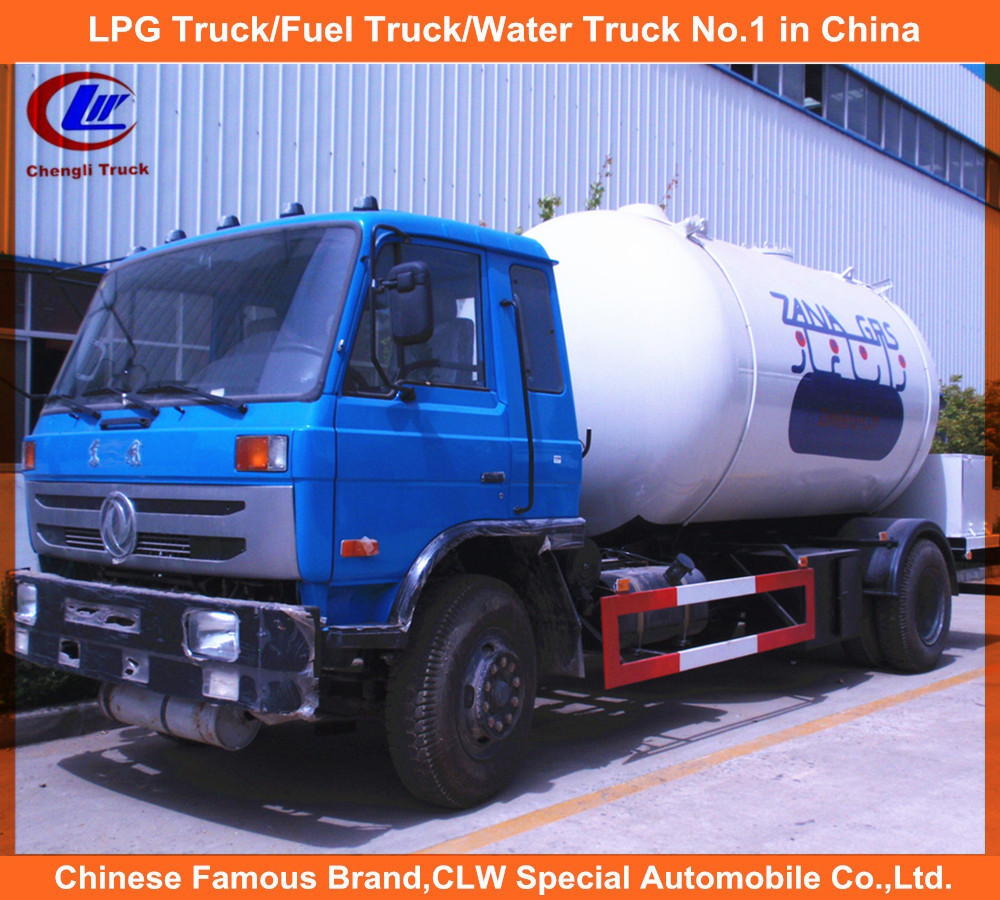

15000L 4X2 Dongfeng LPG Tank Truck Dongfeng LPG Gas Filling Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 38100.0-49200.0/

Price:$38100.0 - $49200.0 / unit

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Feb 01, 2015 To Mar 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EQ1168GLJ2

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Q370r or Q345r

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Volume of LPG Tank:5.5cbm to 15cbm, 15000L LPG Gas Filling Truck

Shape of End Plate:Ellipse or Round

LPG Gas Tank Truck Filling Material:Propane/Propylene /Isobutane

Filling Coefficient:0.42

Safety Control System:Safety Valve, Pressure Meter, Emmergency Shutoff

LPG Tank Baffle:4-5 PCS Inside

LPG Truck Tax Filling Machine:Jingda Brand

Driving Type:6X4 or 4X2 LPG Gas Filling Truck

Horse Power:110HP to 190HP

LPG Mini Gas Truck ABS:Optional as Wabco

Export Markets:Global

Additional Info.

Trademark:CLW Brand

Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO 9001, TS

Origin:Hubei

HS Code:73110090

Production Capacity:800 Unit/Month

Product Description

Dongfeng 4X2 Mini LPG Tank Truck Dongfeng LPG Gas truck LPG tank Truck    Filling machine introduction:
Main function :This small filling machine is mainly used to fill gas for family use LPG cylinder and car by gas-filling gun

1.Pre-setting unit price, gas-filling quantity(volume, weight) and gas-filling amount.
2. Automative compensation function of LPG tempreture and volume
3. overpressure-proof and automative shut-off  protection design
4.Vapor-gas separation and Pressure difference self-protection
5.over-flow self protection
6.Power-off Restore function
7.Provide interface port for tax-controlling machine

15000L 4X2 Dongfeng LPG Tank Truck Dongfeng LPG Gas filling Truck

Main technical parameter:

1.single gun flow:10L/min ~ 60L/min;
2,Max.working pressure:2.5Mpa;
3,working environmental tempreture:-30ºC~+55ºC;
4,Measuring Accuracy: ±1%;
5,Power:AC220±30%,50±1Hz      6,Degree of anti-explosive:Exmdib II AT4
7,pre-setting internal interface port:RS485

BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

Sales Manager: Helen Jiang

Mob: +86 135 5419 5719

Cabin	Driving type 4x2 LHD
Cabin	Dongfeng cab , 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	5900X2045X2600
	Wheel base (mm)	3300
	Wheel track (front/rear) (mm)	1115/1485
	Approach/Departure angle(°)	18/12
Weight in KGS	Tare Weight	4990
	Payload	2850
	Front axles loading capacity	1x1500
	Rear axles loading capacity	1x3000
Max. driving speed(km/h)		80
Engine	Brand	CUMMINS
	Model	B170-30
	Type	vertical in line,water-cooling,4-stroke,direct injection
	Horse Power(HP)	170HP
	Emission standard	Euro 3
Gearbox	5 Forwards gear & 1 reverse gear
Tire	7.50-16 tyre with one spare
Brakes	dual circuit compressed air brake
LPG tanker	1,Size: 3659*1620 mm, tanker body: 5.5CBM; Thickness of body:9.37mm , Q345R steel 2, fitted with refilling machine, filling quantity(Ton/CBM):0.42Ton/CBM; Design pressure:1.77Mpa 3, other safety facility and key parts: Liquid level;safety vlave;tempreture meter;pressure meter;emergency shut-off valve;
