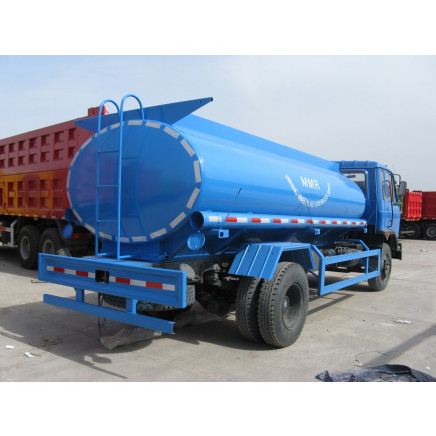

15 Cbm Fuel Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000.0-100000.0/ Piece

Price:$20000.0 - $100000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, CIP, CPT

Payment Terms: L/C, T/T

Price Valid Time:From Oct 27, 2014 To Jan 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SGZ5160

Transmission Type:Manual

Power:Diesel

Load Capacity:15t

Emission Standard:Euro 3

Tank Volume:10001-15000L

Drive Wheel:2WD

Seats:?5

Horsepower:251-350hp

Engine Capacity:6-8L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Condition:New

Truck Type:Tanker Truck

Type:Tank Truck

Export Markets:Global

Additional Info.

Trademark:Dongfeng

Packing:Nude

Standard:4*2

Origin:China

Production Capacity:200units/Month

Product Description

Cabin Driving type 4x2 LHD/ RHD
Dongfeng 153 cab, with one bed and air condition, 70° Hydraulically tillable to the front as attached photo for ref.

Vehicle Main DimensionsOverall dimensions (L x W x H)mm9000× 2490× 3200
Wheel base (mm)5100
Wheel track (front/rear) (mm)1900/1800
Weight in KGSTare Weight7000
Payload12000
Front axles loading capacity1x6000
Rear axles loading capacity1x13000
Max. Driving speed(km/h)90
Engine BrandCummins
ModelB190
Type4-stroke direct injection, 6-cylinder in-line, turbo-charging and inter-cooling
Horse Power(HP)190 HP
Emission standardEuro III
Gearbox6 Forwards gear & 1 reverse gear
Steering power steering
Tire 10.00R20 All Steel Radial tyre
Tank Specifications1, 15, 000 liters, 4 mm tank and wave-proof board, 5mm end plate
2, 3 compartments, 3 API manholes, 3 discharge valves
Pump With one pump, the fuel can be pumped in, also pumped out.
Production cycle25 days

Item	Description
product type	XSJ5080GYY
outside dimension (L×W×H) (mm)	6200×1900×2550
can body dimension (Length×long axis×short axis) (mm)	1680×1110×3200
chassis model	EQ1080SJ19DC
chassis producer	Dongfeng Automobile Co., LTD
wheel base (mm)	3300
engine model	YC4F90-30 produced by Yuchai Group Co., LTD
engine working mode	inline-4, pressurization, inter-cooling, electronic control, diesel engine
fuel type	diesel
rated power	66Kw/(1300r/min)
max. torque	1270N.m /(1200-1500r/min)
approach angle/departure angle (°)	27/23
automobile displacement (L)	2.659
max. speed	95
gear size/count	6.50-16/6
total weight (kg)	8300
curb weight (kg)	3500
rated loading weight (kg)	4605
can announcement volume (gasoline) (m³)	4.38
finished can volume (m³)	4.38
transport material	crude oil, gasoline, diesel, water
