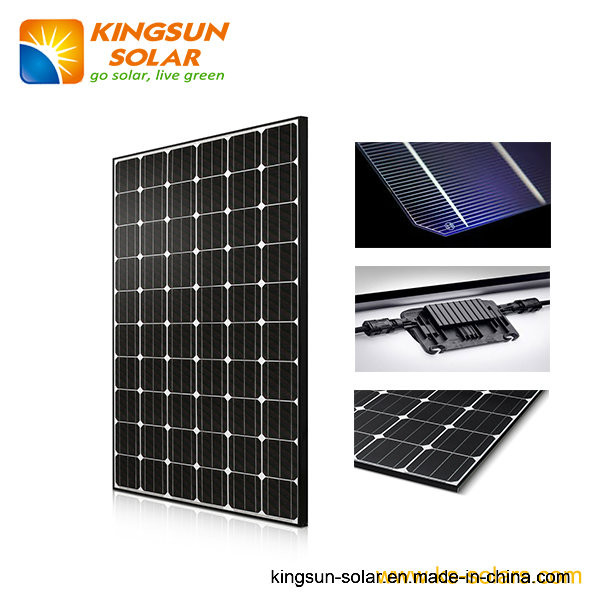

140W-170W Mono-Crystalline Silicon Solar Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.5 - $0.55 / Watts

Min. Order (pcs)	Unit Price
50.0	US $ 0.55/
500.0	US $ 0.53/
1000.0	US $ 0.52/
5000.0	US $ 0.50/

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Apr 10, 2015 To Jul 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSM140-KSM170

Material:Monocrystalline Silicon

Size:1328*808*35mm

Front Glass:Low Iron High Transmisson,Tempered Glass

No. of Cells:6*10

Size of Cell:156*156mm

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Eastern Asia, Western Europe

Additional Info.

Trademark:KingSun

Packing:Standard Export Carton Packaging

Standard:KSM140- KSM170

Origin:Nanjing China

HS Code:85414020

Production Capacity:8MW/Month

Product Description

140-170W Mono-crystalline Silicon Solar Pane

Features:

1. High conversion efficiency based on leading innovative photovoltaic technologies;
2. High stability with guaranteed+/-3%power output tolerance, ensuring return on investment;
3. Beautiful appearance;
4. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish);
5. Withstands high wind-pressure and snow load;
6. Easy to install.

GUARANTEE

10 years for product defects in materials & workmanship
25years transferrable power output warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output

The advantages of KINGSUN:

1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC, TUV, and CE approval, offering the full spectrum sizes, solar panels are as efficient as other competitors, but far cheaper-without skimping on quality.

Components & Mechanical Data

Junction Box in proof-water with TUV Certificate
Bypass Diode Rated 15A
Solar Cable & Connector: 4 m² With MC4 connector with TUV Certificate

1. Toughed Glass: The glass is super white cloth grain of toughened glass, the thickness of 3.2mm, the solar cell spectral response range of wavelengths (320-1100 nm), light transmittance over 91%, Ultraviolet light radiation, light transmittance is not falling. Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.
2. EVA: 0.5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass, TPT agent. With high light transmittance and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
Light transmittance is greater than 90%; Crosslinking degree is more than 65-85%; Peel strength (N/cm), glass/film is more than 30; TPT/film is more than 15; Temperature resistance, high temperature 85° C, low temperature - 40° C.,
3. TPT Back-Sheet: The back of the solar panel, ageing resistance, corrosion resistance, resistance to ultraviolet radiation, airtight, etc. Basic requirements.
4. Frame: Aluminum alloy frame with high intensit, mechanical shock resistance ability

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.

Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature
Operating Temperature: -40 ~ +85° C
Storage Temperature: -40 ~ +85°

140W-170W Mono-Crystalline Silicon Solar Panel

Solar modules can be designed according to client' s specific requirements.

MECHANICAL PARAMETERS
Solar Cell	60(6×10) mono solar cells 125×125 mm
Front Cover	3.2 mm thick, tempered glass
Back Cover	TPT (Tedlar-TPE-Tedlar)
Encapsulate	EVA (ethylene vinyl acetate)
Frame	Double-layer anodized aluminium alloy
Junction Box	IP65 rated
Cables/Connectors	4.0mm2 900mm/MC4 or compatible connectors
Dimensions	1328×808×35mm
Weight	13 kg

WORKING CONDITIONS
Maximum System Voltage	DC 1000V (IEC)
Maximum Series Fuse	10A
Operating TemperatureºC	-40~+85
Storage TemperatureºC	-40~+85
Max. Wind Load/Max. Snow Load	2400Pa/ 5400Pa
Application Class	Class A
Module Area(m2)	1.08m2
Packing configuration	510Pcs./20ft, container 1060Pcs./ 40ft, container

ELECTRONIC PARAMETERS
Module	KSM140Wp- 125M-60	KSM145Wp- 125M-60	KSM150Wp- 125M-60	KSM155Wp- 125M-60	KSM160Wp- 125M-60	KSM165Wp- 125M-60	KSM170Wp- 125M-60
Maximum power at STC (Pmax)	140W	145W	150W	155W	160W	165W	170W
Maximum power voltage (Vmp)	29.5	29.7	29.9	30.1	30.2	30.4	30.6
Maximum power current (Imp)	4.75	4.88	5.02	5.15	5.30	5.42	5.58
Open circuit voltage (Voc)	35.4	35.6	35.8	36.0	36.2	36.2	36.4
Short circuit current (Isc)	5.46	5.62	5.77	5.93	6.08	6.18	6.33
Nominal Operating Cell Temperature	45±2ºC
Temperature coefficients of Isc	+0.049%/ºC
Temperature coefficients of Voc	-0.340%/ºC
Temperature coefficients of Pmax	-0.430%/ºC
Standard Test Conditions (STC)	Irradiance 1000W/m2, Module temperature 25ºC, Air Mass (AM)=1.5
Power Production Tolerance	±3%
