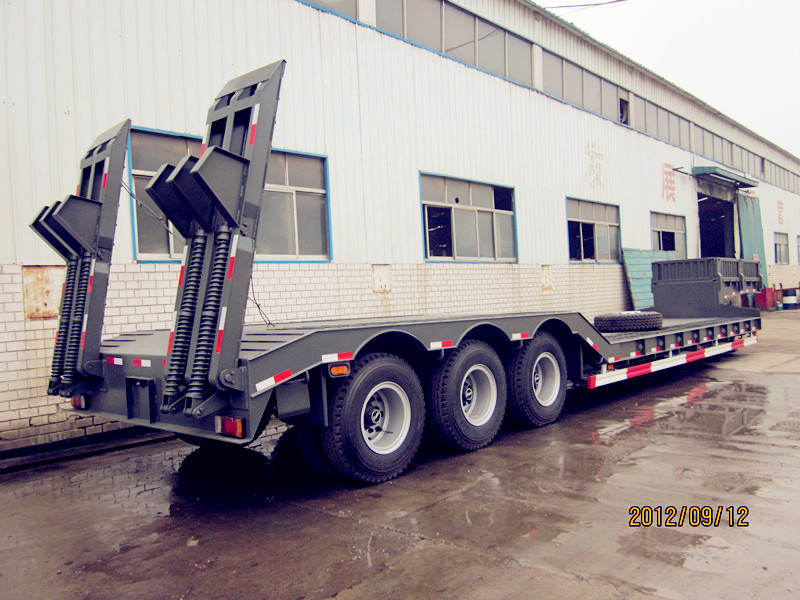

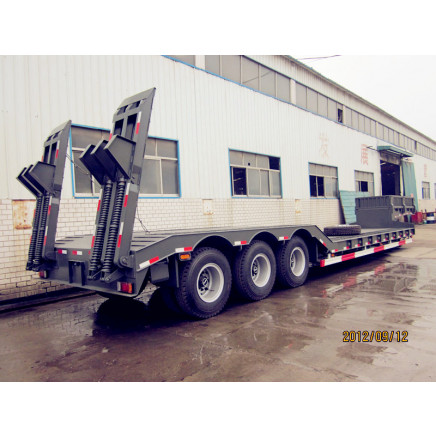

13m Heavy Machine Transport Low Bedsemi Trailer (CTY5225GHY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 18500/ Piece

Price:US $18500.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 18, 2014 To Sep 18, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTY5225GHY

Size:13000*3000*1650mm

Suspension:Common Mechanical Suspension

Axle:Fuwa/Bpw

Leaf Spring:10PCS

Platform:5mm Diamond Steel

Ramp:with

Kingpin:Jost

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Product Description

TONGYADA brand lowbed semi trailer, is made from the high standard Q235 and Q345 steel, the frame bream is well welded by the submerged-arc welding machine, we also have DOUBLE VERTICAL PLATE design for choose, it's for carrying heavey machine up to 100tons. The trailer is well polished by the shot blasting machine before paint. For export, we only use famous parts, such as JOST brand kingpin and Landing legs, Germany WABCO brand brake.

We always firmly believe the stability and safety of the trailer in road is part of our responsibility! ! !
After 6 years of exploring the international market, our semi trailer is well known and accepted by our customers from Afria, Midde east, South Asia, and South America.
Favorable policies are provided for you to join us as the dealer
You are always welcomed to visit our company and factory for business cooperation! ! !
SHANDONG LIANGSHAN TONGYA AUTOMOBILE., LTD, is the full-size Modified Truck enterprise which integrate the design of product, scientific research developing, productin and sale together. There are 128 persons with senior technical title. We have first class numerical control cutting machine, automatic welding machine, large-size Bending Machine and Board Press machine in china, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong Province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipments

Our company:

Process of lowbed semi trailer making:

Lowbed semi trailer for export:

Please contact me as follows:

Tell: +8653185866881
Cell: +8618863788579

Low bed semi trailer	Standard specification
Gross Weight	11-13 tons
Outer side dimension(mm)	13000mm3000mm1270mm(working height)
Loading Capacity (Ton)	30-100 ton
AXLES	13 T or 16T , 3 AXLES
Tire	11.00R20 12pieces or optional
Rim	8.00_20 12pieces or optional
Suspension	mechanical suspension
Spring leaf	10 pieces, intensify
King pin	JOST brand 2.0" or 3.5"
Support leg	JOST brand D200T
Ladder	A pair of ladder
Main beam	Height: 500mm, upper plate is 20mm, middle plate is 12mm, down plate is 20mm side beam is 25#
Platform	4mm diamond platform
Brake chamber	4 double and 2 single chambers
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m0.5m0.5m
