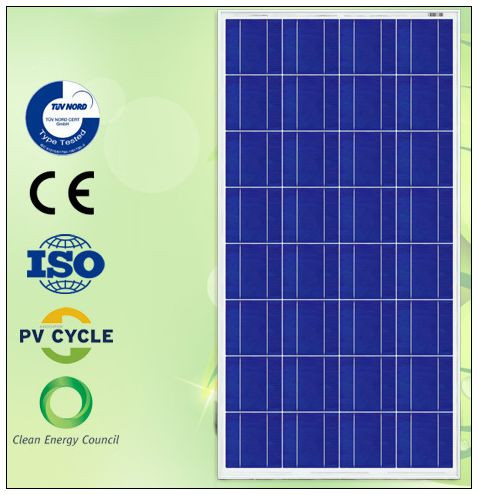

135W-155W Poly-Crystalline Silicon Solar Power Module

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.48 - $0.54 / Piece

Min. Order (pcs)	Unit Price
50.0	US $ 0.54/ Piece
100.0	US $ 0.53/ Piece
500.0	US $ 0.52/ Piece
1000.0	US $ 0.50/ Piece
5000.0	US $ 0.48/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Jun 26, 2015 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSP135-KSP155

Material:Polycrystalline Silicon

Size:1480*680*35mm

Weight:12kg

No. of Cells:4*9

Size of Cell:156*156mm

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Eastern Asia, Western Europe

Additional Info.

Trademark:KingSun

Packing:Standard Export Carton Packaging

Standard:KSP135 - KSP155

Origin:Nanjing China

HS Code:85414020

Production Capacity:8MW/Month

Product Description

135-155W Poly Solar Panel/Solar Module

Structure of Solar Panel: <
1. Front Material: 3.2MM low-iron toughened glass <
2. Back Material: White TPT\TPE <
3. Bondable Barrier Film: EVA <
4. Frame: Aluminum alloy plated with oxidation film
5. The warranty of a standard about 25 years/ 80% efficiency on maximum output
10 years / 90% efficiency on maximum and 5 years warranty on workmanship
6. Module size can be changed according to the customers' requirement
7. Standard testing conditions: Am1.5 25� C 1000W/m2

EFFICIENCY

Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability

BENEFITS

Manufactured in an ISO 9001: 2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship

The Advantages of KINGSUN

1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC, TUV, and CE approval, offering the full spectrum sizes, solar panels are as efficient as other competitors, but far cheaper-without skimping on quality.

Components & Mechanical Data

Junction Box in proof-water with TUV Certificate
Bypass Diode Rated 15A
Solar Cable & Connector: 4 m� With MC4 connector with TUV Certificate
1. Toughed Glass: The glass is super white cloth grain of toughened glass, the thickness of 3.2mm, the solar cell spectral response range of wavelengths (320-1100 nm), light transmittance over 91%, Ultraviolet light radiation, light transmittance is not falling. Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.
2. EVA: 0.5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass, TPT agent. With high light transmittance and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
Light transmittance is greater than 90%; Crosslinking degree is more than 65-85%; Peel strength (N/cm), glass/film is more than 30; TPT/film is more than 15; Temperature resistance, high temperature 85� C, low temperature - 40� C.,
3. TPT Back-Sheet: The back of the solar panel, ageing resistance, corrosion resistance, resistance to ultraviolet radiation, airtight, etc. Basic requirements.
4. Frame: Aluminum alloy frame with high intensit, mechanical shock resistance ability

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.

Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25� C cell temperature
Operating Temperature: -40 ~ +85� C
Storage Temperature: -40 ~ +85�

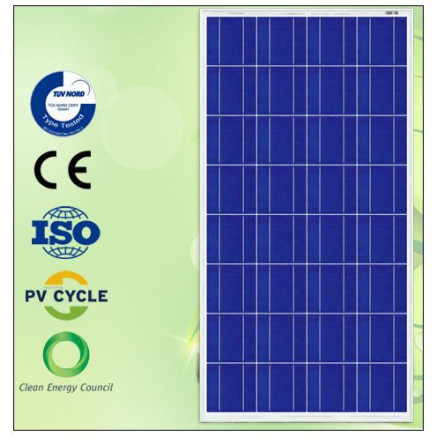

135W-155W Poly-Crystalline Silicon Solar Power Module

Solar modules can be designed according to client' s specific requirements.

ELECTRICAL CHARACTERISTICS
Model Number				KSP155	KSP135		KSP140			KSP145	KSP150
Maximum Power as per STC	Pmax(W)			155	135		140			145	150
Power Tolerance	%			� 3%
Maximum Power Voltage	Vmp(V)			18		18.14	18.36	18.15				18.28
Maximum Power Current	Imp(A)			6.86		7.45	7.65	7.99				8.21
Open Circuit Voltage	Voc(V)			22.6		21.74	21.96	21.72				21.9
Short Circuit Current	Isc(A)			9.02		8.04	8.17	8.69				8.93
Maximum System Voltage	VDC			1000
Cell Efficiency	%			17.3		15.4	16.0		16.6			17.1
Module Efficiency	%			15.2		13.4	13.9		14.4			14.9
Cells per Module	Pcs			36
Cell Type				Polycrystalline silicon
Cell Size	mm			156 x 156
Bypass Diodes	Pcs			10Amp, 2 pcs
Max. Series Fuse Rating	A			10A
Temperature coefficient of Isc	%/			0.05
Temperature coefficient of Voc	%/			-0.35
Temperature coefficient of power	%/			-0.47
NOCT- Nominal operating cell temperature				47 � 2 degree
Operating Temperature				from -40 to +85 degree
MECHANICAL CHARACTERISTICS
Dimensions		mm	1480 x 680 x 35
Weight		Kg	11.6
Type of Junction Box			TUV certified, IP65
Cable Type, Diameter			-
Connector			-
Tempered Glass			3.2 mm, high transmission, low iron
