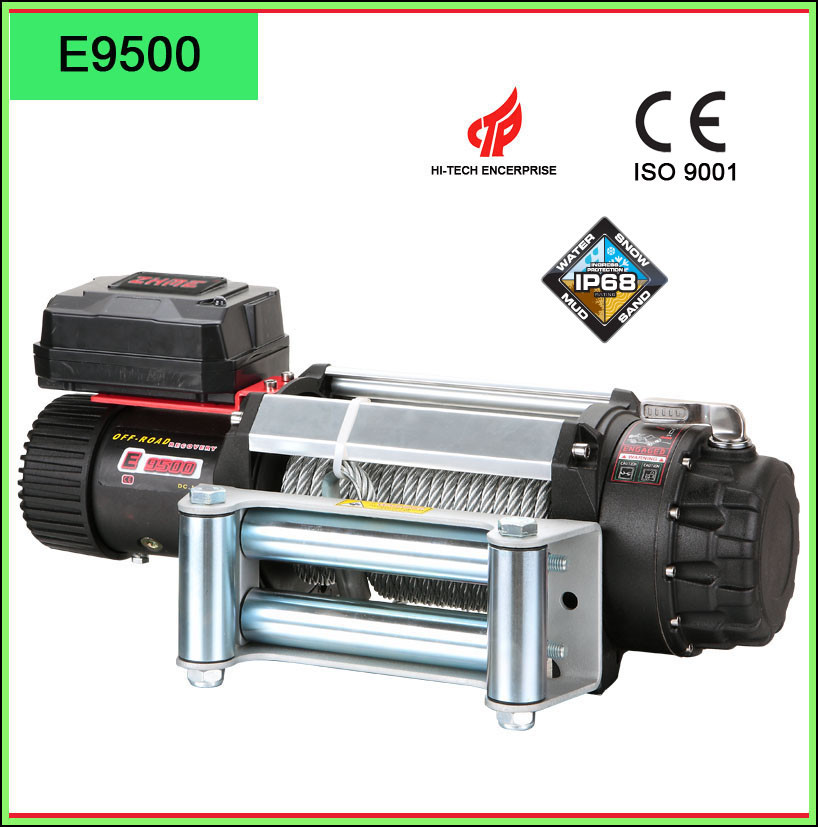

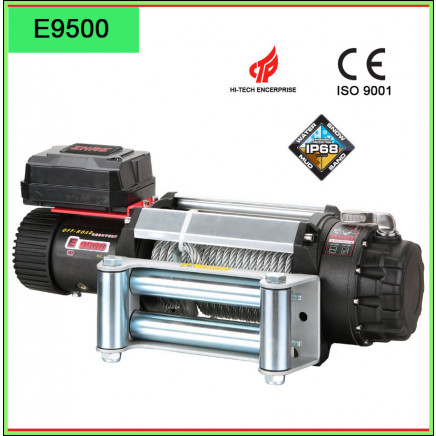

12V or 24V Big Pulling Truck Winch

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$260.0 - $300.0 / Piece

Min. Order (Pieces)	Unit Price
15.0	US $ 260/ Piece
400.0	US $ 300/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Nov 08, 2014 To Feb 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E 9500

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:Forward

Electric Winch Model:Truck

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:Mud

Certification:CE

Voltage:12V DC 6.0HP

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000PCS / Month

Product Description

Truck Winch
Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Wire rope 8.2mmX28m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 86 lbs (39 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets. 12V or 24V Big Pulling Truck Winch

Line pull	Lbs	0	2000	4000	6000	8000	9500
Line pull	Kgs	0	907	1814	2722	3629	4310
Line speed	FPM	35.4	17.1	13	9.79	8.01	7.2
Line speed	MPM	10.8	5.2	3.98	2.98	2.44	2.2
Motor current	Amps	80	140	200	260	310	350

Line pull and cable capacity

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	9500	8000	7200	6600
Rated line pull per layer	Kgs	4310	3629	3266	2994
Cable capacity per layer	Ft.	19.6	43	72	92
Cable capacity per layer	M	6.0	13.2	22	28
