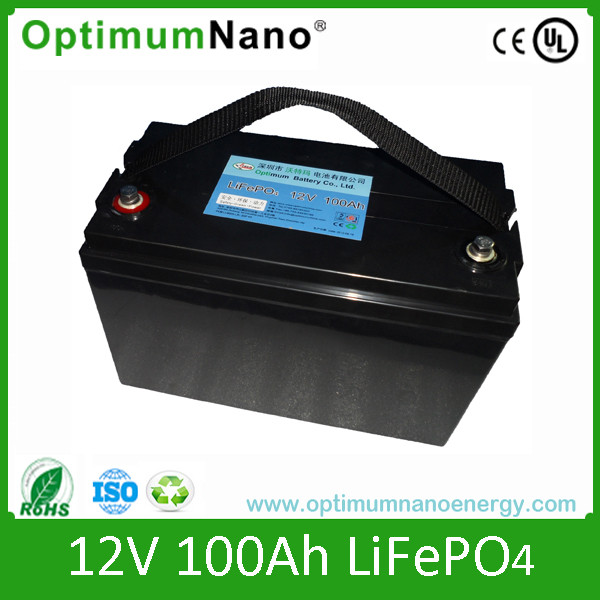

12V Lithium Ion (LiFePO4) Batteries with PCM and Charger

More Views

12V Lithium Ion (LiFePO4) Batteries with PCM and Charger

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, CIP, CPT, EXW

Payment Terms:T/T, Western Union

Trademark:OPTIMUMNANO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT012-XXX

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rated Voltage:12.8V

Capacity:5-400ah, or More

Standard Charge Current:0.2c

Cycle Life:2000 Times at 1c Rate and 100%Dod

Dimension:Customized

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Strong Carton or Wooden Case

Standard:CE,UL,TS16949,ISO9001-2008

Origin:Shenzhen, China

HS Code:8507600090

Production Capacity:2mwh/Day

Product Description

12V lithium iron phosphate (LiFePO4) batteries

Product Feature
1. Safety: safest Li-Ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

Applications
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

IS9001:2008, TS16949 factory

12V Lithium Ion (LiFePO4) Batteries with PCM and Charger

Specifications

12.8V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT12005	OPT12010	OPT12020	OPT12025	OPT12030	OPT12040	OPT12050	OPT12060
Standard Capacity	5Ah	10Ah	20Ah	25Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	?3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	18475135	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	3.5Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT12080	OPT12100	OPT12120	OPT12150	OPT12200	OPT12200	OPT12300	OPT12400
Standard Capacity	80Ah	100Ah	120Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	339173212	502262242	502262242	360220262	520262242	560360200
Approx N.W	11Kg	16Kg	19Kg	24Kg	35Kg	38Kg	45Kg	65Kg
