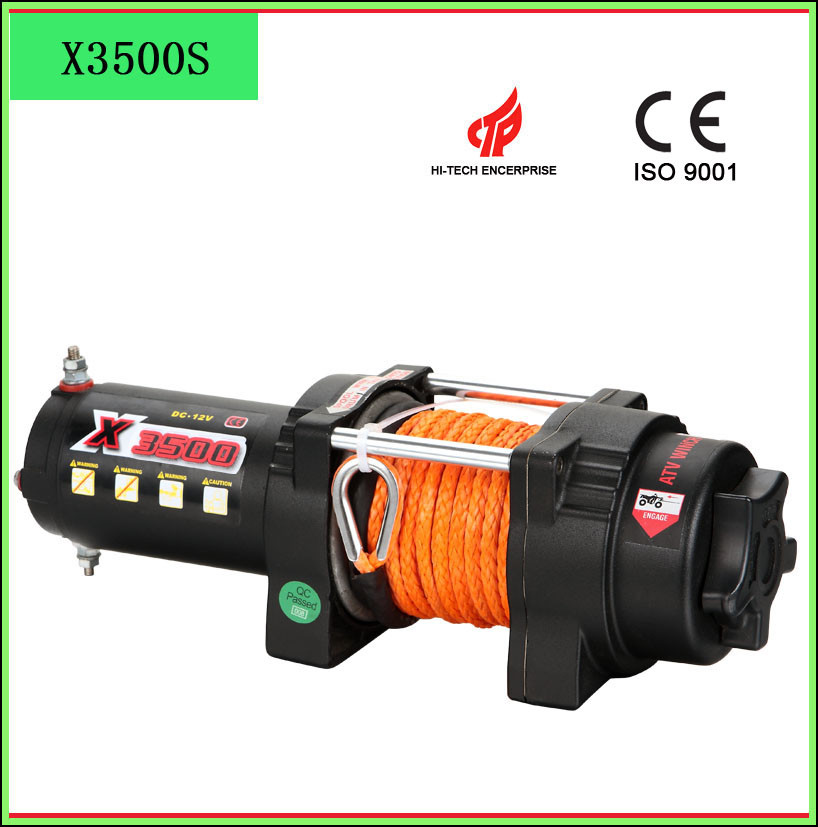

12V ATV Electric Winch with 3500lbs Pulling Capacity

12V ATV Electric Winch with 3500lbs Pulling Capacity

More Views

12V ATV Electric Winch with 3500lbs Pulling Capacity

Be the first to review this product

More than 10 available

Availability: In stock

Price:US $70.0 / Piece
Min. Order (Pieces) Unit Price
100.0 US $ 70/ Piece
Trade Terms: FOB, CFR, CIF, EXW
Payment Terms: L/C, T/T, D/P
Price Valid Time:From Jun 13, 2015 To Sep 13, 2015
Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now
OR
12V ATV Electric Winch with 3500lbs Pulling Capacity

Also available at

Login or Signup to View Links.
Description

Details

Basic Info.

Model NO.:X3500S
Type:Electric Winch
Power Type:Permanent-magnet DC
Pull Direction:Forward
Brand:Zhme
Certification:CE
Rated Line Pull:3500lbs(Kgs) Sinle Line
Export Markets:Global

Additional Info.

Trademark:ZHME(can be OEM)
Packing:Netural Packages
Standard:CE
Origin:China
HS Code:84253190
Production Capacity:5000 PCS Per Month

Product Description

12V ATV ELECTRIC WINCH WITH 3500LBS PULLING CAPACITY

1. Brake system: Fully independent and automatic braking ensures safety and reliablity.
2. Water reasistance: Proven design for reasistance to severe environmental conditions
3. Motor: Low current and high efficiency minimize battery drain.

Rated line pull: 3500lbs(1587kgs) single line
Motor: Permanent Magnetic motor (1.5HP)/1.0kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø 5.5mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 334mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 17.6LBS(8.0KGS)
Packing: 440mmX250mmX220mm(per carton)
1000PCS per 20' container

Accessories:


Dimensions:
Line speed and motor current(first layer)
Line pulllbs01000200030003500
kgs045490713601589
Line speedFPM1610.59.27.25.9
MPM4.93.22.82.21.8
Motor currentAmps1570105135150








Line speed and cablecapacity
Layer of cable
1234
Rated line pull per layerlbs3500287024302100
kgs159813001100950
Cable capacity per layerFt.6.915.1240936.4
M2.14.67.610
