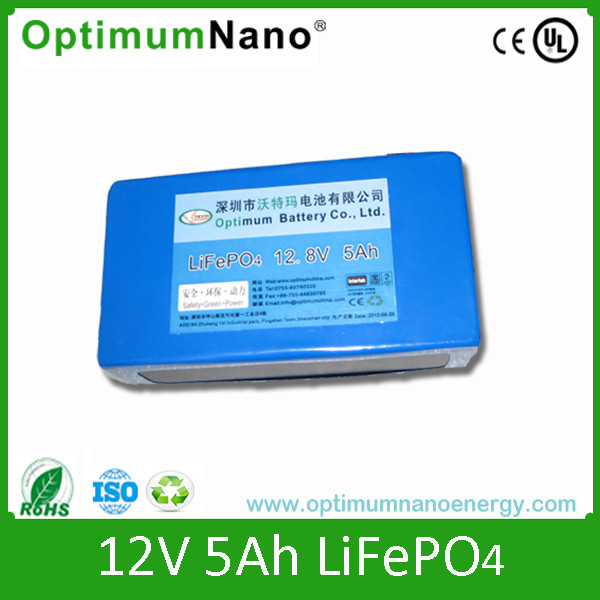

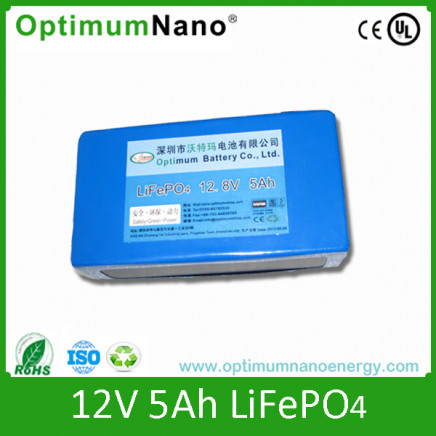

12V 5ah Lithium Ion Battery Solar Light Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $80.0 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 1/ Piece
50.0	US $ 70/ Piece
100.0	US $ 80/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Aug 11, 2015 To Nov 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-5

Application:Solar Light

Specification:12V 5ah Lithium Battery

Rated Voltage:12.8V

Capacity:5ah

Dimention:151*65*95mm or Customized

Weight:About 0.8 Kg

Long Life Cycle:More Than 2000 Cycles(1c)

Battery Model:12V 5ah Solar Light Battery

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:PVC, Epoxy Board, Plastic Box, Carton

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:Shen Zhen China

HS Code:8507600090

Production Capacity:500, 000 PCS/Month

Product Description

12V 5ah Lithium Ion Battery Solar Light Battery

No.	Item	General Parameters
1	Model	OPT-12-5
2	Standard capacity	5Ah
3	Rated voltage	12.8V
4	Max. Charge voltage	14.6V
5	Discharge Cut-off voltage	10V
6	Standard charge current	1A
7	Max Continuous discharge current	5A
8	Peak Instant Discharge Current	10A(5Seconds)
9	Dimension(Customized)	1516595mm
10	Total weight(Approx.)	About 0.8 Kg
11	Operate temperature	-20°C~60°C
12	Built-in Protection Circuit Module	YES
13	Cycle time	2000 times at 1C, 80% capacity remaining
14	Built-in PCM functions	Over charged protection
		Over discharged protection
		Short circuit protection

--Feature

1. Safety: Passed abuse and safety test, no fire, no explosion with stable chemical structure,
2.Smaller space: 1/3 of the lead acid battery; 1/2 weight of lead acid battery,
3. Low self-discharge: Less than 3% per month,
4. Wide range temperature adaptability: LiFePO4 battery could work at -20º C~ 60º C,
5. Long life cycles: 1C mor than 2000 times, with long lifespan 5-10 years,
6. Low Maintenance Cost: Maintenance free,
7.Environment Friendly - Clean and Green energy poses no pollution on our environment,
8. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE, IEC62133 etc...Product certificates.

--Application

1. Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc; Intellectual Robots; Power tools: Electric drills, toys;

2. Energy Storage
Solar-Wind Power System; City Grid (On/Off); Community and Family

3. Back-up System and UPS
Telecom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment

4. Other Applications
Security and Electronics, Mobile POS, Mining Light / Torch / LED Light / Emergency Light

--Service by us

1.Give you the specific battery pack within 24hours according to your requirements
2.Professional:Professional technicians offer overall systematic service.
3. One-stop battery solution with battery cells, BMS, case and matching charger
4.Beyond customer demand: To think more for customer, do better for customer and make customer more satisfied.

--Why do you choose us?

Quick response to clients' enquiries within 24hrs

Tailor-made solution provided by our experienced team and professional engineers.

More than 12 years experience in producing battery products for various application.

Value quality and long-term cooperation to reach win-win relationship.
