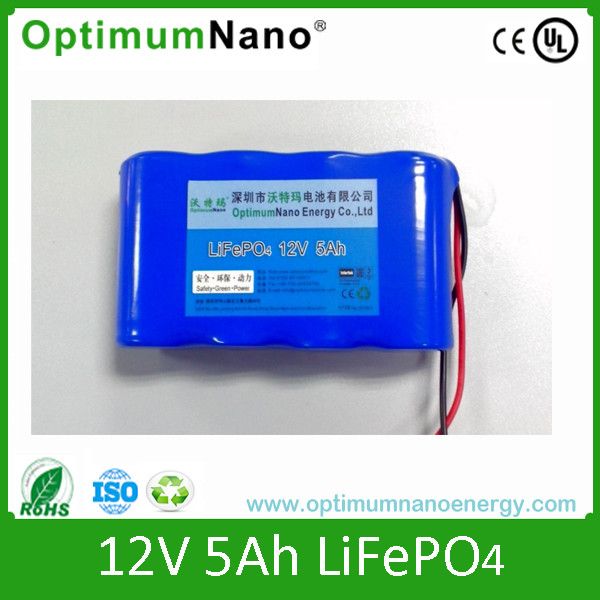

12V 5ah Lithium Battery for LED Light Wind Solar Lamp

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 25.68/ Piece

Price:US $25.68 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 22, 2015 To Oct 22, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-1205

Type:Lithium Battery

Charger Type:Electric Charger

Charger Application:Standard Battery

Nominal Voltage:12V

Charger Style:Simple Charger

Compatible Battery Type:32650

Size:288*35*35mm

Certification:RoHS, UL, CE

Socket Type:For E.U.

Recyclable:Recyclable

Norminal Capacity:5ah

Normal Discharge and Charge Rate:0.2c

Rated Voltage:12V

Green Energy:Zero Emission

Dimension:288*35*35mm

Color:Blue

Resistance:Less Than 80 Milli-Ohm

Assemble:as Your Demands

Energy / Weight:120wh/Kg

Energy / Volume:310wh / L

Export Markets:Global

Additional Info.

Trademark:optimum

Packing:Customised Package,Lead Acid Plastic Case

Standard:12V5Ah

Origin:China

HS Code:85078020

Production Capacity:1000packs/Week

Product Description

12V 5ah Lithium Battery for LED Light Wind Solar lamp

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: OPTIMUMNANO
Model Number: OPT-12V5Ah-Li
Type: Li-Ion
Nominal Voltage: 12V
Size: 288*35*35mm
Nominal Capacity: 5Ah
Work voltage: 12.8V(3.20V/cells)
Standard capacity: 5Ah(0.2C3A)
Mininum Capacity: 4.75Ah(+ -5%)
Max. Charge voltage: 14.6V(Single Ave. Charge Voltage 3.65V)
Cut-off voltage: 10.0V(Single Ave. Discharge Voltage2.0V)
Application: UPS, e-bike, e-scooter, solar products
Certification: CE, RoHS, UL, ISO9001, SGS, UN38.3
Cycle life: More than 2000 times with 100% DOD
Shape: Cylindrical
Warranty: 2 years

Item		Specification
Nominal Voltage		12V
Nominal Capacity		5Ah
Size		battery: 1457545mm
Weight		0.8kg
Max Charge Protetion Voltage		14.6V
Cut-off Discharge Voltage		10.0V
Standard Charging Time		2-3Hours
Charge Method		CC-CV (constant current and constant voltage )
Max Discharge Current		5A, can be Customized
Recharge Cycle Life		2000times
Working Temperature	Charge	0~45° C
	Discharge	-20~60° C
StorageTemperature	One month	-20~60° C,
	Three months	-20~45° C,
	One year:	-20~25° C,
Protection Fuctions		build the PCM internal protect the battery pack from Over charge, Over discharge, Short Circuit and balancing the cells
Warranty		2 year
