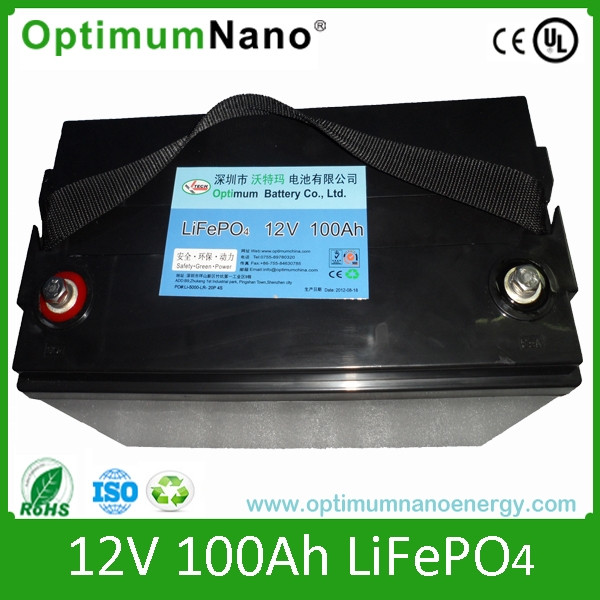

12V 100ah LiFePO4 Battery for Engery Storage with PCM

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $500.0 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 500/ Piece
100.0	US $ 1/ Piece

Trade Terms: FOB, CIF, DDP, CPT, EXW

Payment Terms: L/C, T/T, Western Union, Cash

Price Valid Time:From May 18, 2015 To Jul 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-100

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Medium Discharge Rate

Size:Medium, 325*172*214mm

Accessories Type:Battery

Rated Capacity:100ah

Standard Voltage:12V

Usage:Remote Control Car

Electrolyte:LiFePO4

Maintance Type:Free

Sealed Type:Sealed

Rated Voltage:12V

Warranty:5years

Life Cycles:2000 Times

Application:E-Car,E-Bike ,Scooter,E-Walker

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949

Advantages:Safety,Long Life Cycles,High Energy Density

Max Charge Rate:14.6V

Max Discharge Rate:10V

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Plastic Casepvc or Cutomized Alumilium Case

Standard:UL CE ROHS TS16949 ISO9001 SGS Standard

Origin:China Guangdong Shenzhen

HS Code:8507600090

Production Capacity:50, 000 PCS/Year.

Product Description

12V 100ah LiFePO4 Battery for Tow Car/Engery Storage with PCM and charger

1. This battery suitable for all of the electric vehicle and skiing borad and UPS backup.

2. The cycle life of the battery pack can reach 2000 time with 0.2C-1C discharge current.

3. The pack have a BMS or PCM, so it will not over-discharge and over-charge. It is as a balance charger, but it is cheaper than it.

4. Now it is the best welcome and potential product in the battery market.

5. Rated voltage is 25.6V, max charge voltage is 29.2V, cut-off voltage is 16V. Rated capacity is 30AH.

Standard capacity0.2C	30Ah
Rated voltage	12v
Max. Charge voltage	14.6
Cut-off voltage	10V
Continuous charge current	0.5C
Continuous discharge current	1.0C
Max. constant discharge current	1.5C

12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT-12-005	OPT-12-010	OPT-12-020	OPT-12-030	OPT-12-040	OPT-12-050	OPT-12-060
Standard Capacity	5Ah	10Ah	20Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	?3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100%DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	118.5175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT-12-080	OPT-12-100	OPT-12-150	OPT-12-200	OPT-12-200	OPT-12-300	OPT-12-400
Standard Capacity	80Ah	100Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	502262242	502262242	360220262	520262242	560360200
Approx N.W	11Kg	16Kg	24Kg	35Kg	38Kg	45Kg	65Kg

Comparison between LiFePO4 battery and Lead-Acid battery:
BatteryIngredients	LiFePO4 Battery	Lead-Acid
Safety & Environmental Concern	Safest; no explosion; no smoke; no fire under very bad working condition; most environmentally friendly; non-toxic; no rare metal, fire resistant, easily disposed of.	safety is acceptable; heavy pollution to water and soil; breaking ecological balance; threatening people' s health especially for Children; hard to dispose of; high re-use cost.
Life Cycle	Best, up to 1000 times under 80% DOD(theoretically 2000 times)	Very short life cycle, about 150 times under 100% DOD; maintenance needed very often.
Long term Cost	Most economical	Cost of whole lifetime is higher than LiFePO4
Thermal Performance	Excellent Can work normally under -20° C~70° C	The capacity decays quickly if the temperature is higher than 50° C
