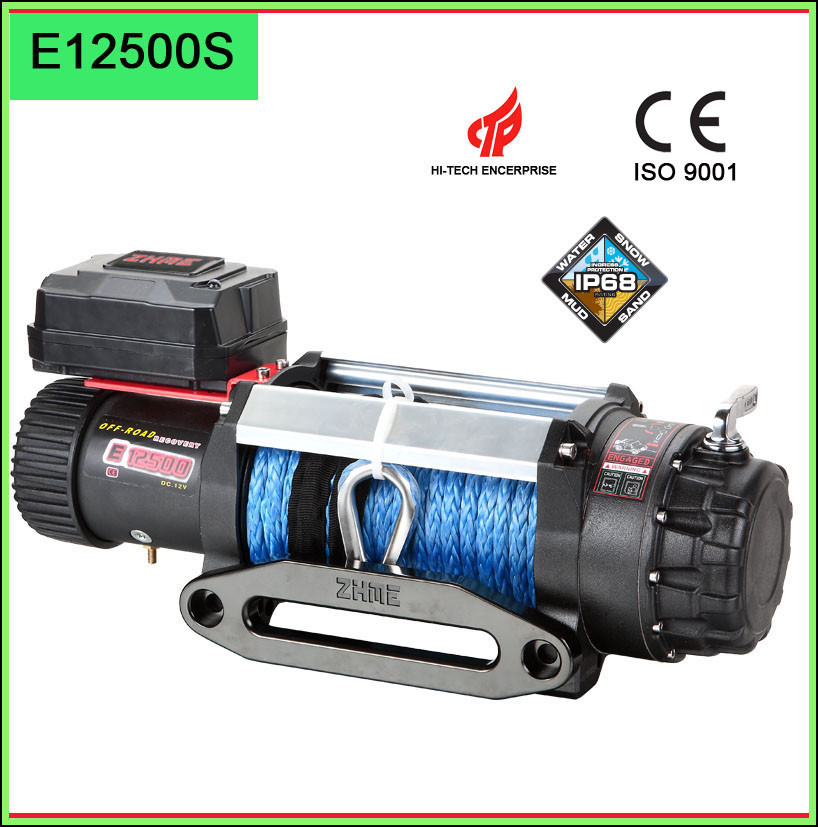

12500 Sunthetic Rope Winch for Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$320.0 - $348.0 / Piece

Min. Order (Pieces)	Unit Price
15.0	US $ 348/ Piece
500.0	US $ 320/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Nov 15, 2014 To Feb 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E12500S

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:Forward

Brand:Zhme

Applicable Environment:Mountain Road

Certification:CE

Finishing:Black Textured

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000PCS / Month

Product Description

Auto winch E 12500 S
Rated line pull: 12500lbs (5670 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 262: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 11mmX24m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 79lbs (36 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, pallets Optional

PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs	0	2000	4000	8000	10000	12500
	Line pull	Kgs	0	907	1814	3629	4536	5670
	Line speed	FPM	25.6	12.5	8.9	7.3	6.4	6.1
	Line speed	MPM	7.8	3.8	2.72	2.24	1.96	1.85
	Motor current	Amps	65	100	130	200	230	290

Line pull and cable capacity	Layer of cable		1	2	3	4
	Rated line pull per layer	Lbs	12500	10750	9460	8040
	Rated line pull per layer	Kgs	5670	4876	4290	3647
	Cable capacity per layer	Ft.	15.75	36.4	61.3	85.3
	Cable capacity per layer	M	4.8	11.1	18.7	26
