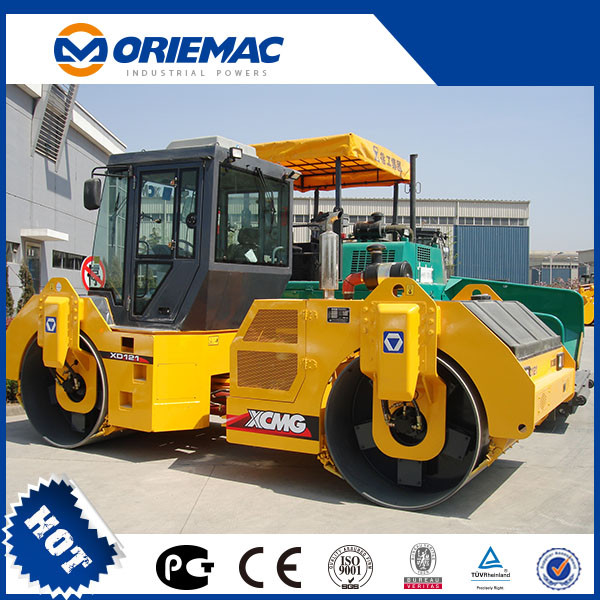

12300kg Double Drum Roller XCMG Xd121e

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 60000/ Piece

Price:US $60000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 05, 2014 To Sep 05, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XD121E

Type:Road Roller

Working Method:Vibration

Axle:Biaxial Dual-Drum

Operating Weight:12300kg

Engine Model:Deutz Bf4m2012c

Engine Power:98kw

Static Linear Load:295n/Cm

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude Packing

Standard:CE, ISO9001

Origin:Jiangsu, China

HS Code:84294019

Production Capacity:500 Set/Sets / Month

Product Description

1. Operation weight: 12300kg
2. Weight on front drum/rear wheels: 6150kg
3. Vibration frequency: 45-48
4. Engine: 98kw DEUTZ

Comfortable driving
Spacious and bright cab features wide visibility and comfortability, and the suspensible seat, speaker and safety belt are equipped in the cab.
· Unique structure
XCMG unique cylinder structure features strong rigidity and strength, and it adopts the special bearing, high limit speed and strong carrying capacity to avoid the polarization of the vibrating drum.
The lubrication method of the vibration bearing is simple and convenient, and the fault of the lubrication system is low.
· Convenient control
· Convenient operation
The control panel could be adjusted in 180 degrees, and the operator could easily operate the machine during Forward and Reverse, and each compaction mode has good visibility.
It adopts hydraulic drive and electric-hydraulic control technology, contributing to simple operation.
Automatic watering and vibrating system improves the flatness of the road compaction.
XCMG patented crab mechanism and dual-articulated steering could ensure staggering distance of 200mm between the front and rear drums, which is convenient for the side compaction and turning compaction. When the dual-articulation is activated simultaneously, the min. Turning radius could be 6000mm.
Adjustable resin mud-scraper features easy operation.
· Leading in industry of compaction and watering function
The vibration frequency is adjustable in certain range, two gears of amplitude adapt to the asphalt compaction of different depth.
The unique separate vibration function. The front and rear drums could vibrate at the same time, and the drum could vibrate separately, improving the compaction efficiency.
· Excellent configuration
The key imported parts: Imported hydraulic plunger piston and motor feature higher centrifugal force and theoretical gradeability. The watering pump and vibration bearing are all of imported parts. There are multiple configurations for the engine to choose to meet various conditions.
Large capacity plastic water tank, three-stage filtering, and double watering systems and interval 7-gear watering ensure the smooth watering.
· Convenient repair
The engine hood could be opened from three sides, and the engine and hydraulic pump and each control valve could be checked easily.

Type	Unit	XD121E
Operating weight (including cab)	kg	12300
load on front drum	kg	6150
Load on rear wheels	kg	6150
Static linear load	N/cm	295/295
Speed	km/h	0_10
Gradeability in theory	%	30
Minimum turning radius	mm	4770/6900
Crab-walking distance	mm	160
Minimum ground clearance	mm	340
Wheel base	mm	3700
Steering angle	± °	35
Swing angle	±°	8
Vibration frequency	Hz	45_48
Nominal amplitude	mm	0.41/0.8
Centrifugal force	kN	85/140
Model and manufacturer		DEUTZ BF4M2012C
Rated rotating speed	r/min	2300
Rated power	kW	98
Rated oil wear	g.kw/h	205
Water tank capacity	L	2×450
Fuel tank capacity	L	210
