12000L Forland 4X2 Water Tank Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

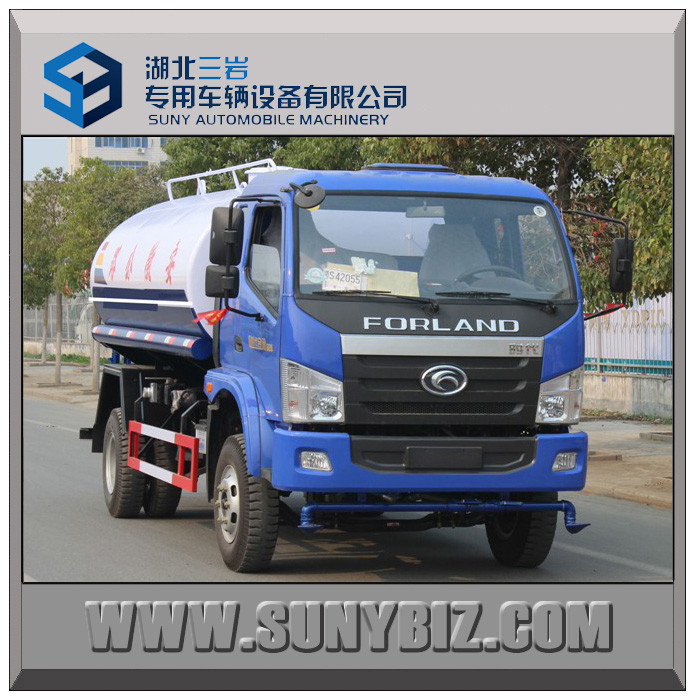

12000L Forland 4X2 Water Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$23000.0 - $28000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 28000/ Piece
10.0	US $ 25000/ Piece
20.0	US $ 23000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 26, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BJ1163

Volume:10001 - 15000L

Certification:ISO9000, CCC

Emission Standard:Euro 3

Sprinkling Area:?16m

Transmission Type:Manual

Payload:15t

Fuel:Diesel

Drive Wheel:4�2

Engine Capacity:6 - 8L

Engine Type:4 Stroke

Condition:New

Chassis Brand:Foton-Forland

Cabin:Half Row, LHD

Wheel Base:4500mm

Engine:132kw / 180HP

Drive Axle:10t

Gearbox:Fast,8-Speed

Tire:9.00r20

Tanker Capacity:12000L to 15000L

Tank Material:Carbon Steel Optional Stainless Steel

Thickness:4mm Tank

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

12000L 15000L TANK TRUCK
4X2 WATER TRUCK
FORLAND 4X2 WATER TANK TRUCK

Products Technical Specification
Brand-Series		FORLAND
Product Name		4*2 water truck
Chassis Model		BJ1163VLPHG-A
Emission Standard		Euro 3
Fuel type		Diesel
Cabin		Half row
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	850024802830
	Tank dimensions	440023001500
	Wheel base	3950 / 4500
	Front overhang	1450
	Rear overhang	2450
	Min. ground clearance	540
Weight data (kg)	G.V.W	15995
	Curb weight (chassis)	6000
	Max payload	15000
Whole vehicle main performance	Max. speed (km/h)	85
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	YC6J180 33
	Maximum power	132kw / 180hp
	Number of cylinders	6
	Displacement (L)	6.494
	Engine Manufacturer	Guangxi yuchai engine Co., Ltd.
Transmission	Model	FAST 8
Transmission	Number of gears	8 forward gears& 1 reverse
Axle	Rear Load capacity (ton)	10T
Suspension	Leaf spring	9/12+9
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres & Quantity		9.00R20 & 6+1
Tank Description
Tank capacity		12000 ~ 15000
Tank dimensions(mm)		440023001500
Tank Description		Shape: Square Material: carbon steel Thickness: 4 mm
Standard Equipment		Equipped with front(rear, side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with Wei Long pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauzeequipped with self-flow valve, Fire coupling and self-priming pump with capacity of 60 cubic meters mph

Other water tank trucks:

Drive Type	Tank capacity
4x2 4x4	1000L ~ 18000L
6x2 6x4 6x4	18000L ~ 25000L
8x2 8x4 8x8	26000L ~ 30000L
water tank trailer	30000L ~ 60000L
Many Chassis brands: Dongfeng,FOTON,FORLAND,FAW,SHACMAN,SINOTRUK,Beiben, IVECO HONGYAN,JAC,JMC,ISUZU,YUEJIN,KAMA,KARRY,T-KING, JINBEI,HINO,UD,etc.

We also have many brands of chassis
eg:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-100P-600P-700P
-HINO 700
-UD
................,etc.

If you have any questions please let Adam Li know!!!
