12000kg Hydraulic Single Drum Compactor Road Roller XCMG Xs122 for Sale

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 50000/ Piece

Price:US $50000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Apr 17, 2015 To Jul 19, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Xs122

Type:Road Roller

Working Method:Vibration

Axle:Biaxial Dual-Drum

Operation Weight:12000kg

Weight on Front Drum:6700kg

Vibration Frequency:30/35Hz

Engine:93kw Cummins

Axles:Dana Axle

Static Linear Pressure:308n/Cm

Travel Speed:0-10.4km/H

Grade Ability:45%

Steering Angle:±30 Degree

Oscillating Angle:±10 Degree

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:40hq or RO/RO or Bulk Cargo

Origin:Jiangsu, China.

Production Capacity:200 Units/Month

Product Description

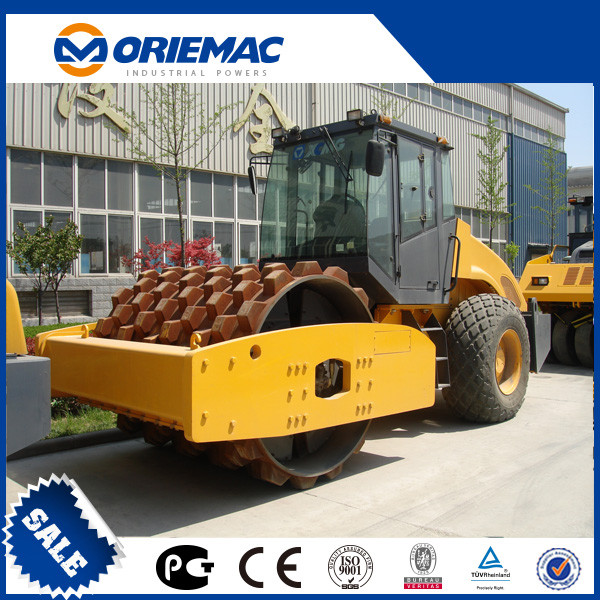

12000kg hydraulic single drum compactor road roller XCMG XS122
We shall be highly appreciated your email of further XS122 price and parameter.
XS122 is a medium-sized hydraulic vibratory compactor developed on the basis of XS120 with better performance and appearance. Representing XCMG hydraulic vibratory compactors, the compacting performance, driving performance, operating performance, reliability, and maintenance performance represent the highest level of domestic compactors.

Wide view
The columns at the rear flank are moved to sides. The front and rear of the cab adopts full-glass design, supporting wide view for the drivers.
Comfortable operating environment
Full hydraulic drive makes operations easy and convenient. The instrument panel accords with the ergonomics, equipped with suspended seat and car radio, making the driving more comfortable.
The air conditioning supplies comfortable operating environment.
Remarkable compacting performance
Dual frequency and dual amplitude vibrating system and scientific and reasonable static linear load and excitation force ensure the effective compaction of different materials and layers with different thicknesses.
The welded convex block drum and fabricated expand the application range, realizing "one machine, two purposes".
Outstanding powertrain
Adopt the imported CUMMINS water-cooled turbo-charged engine, features reliable performance, large power reserve, low oil consumption, low noise, meeting the standard of European II.
Adopt imported heavy-duty drive axles with NO-SPIN Differential. The drive wheels adopt wide base tyres which have large ground connection area, improving the driving performance, and ensuring good trafficability in any case.
Hydraulic drive system: Adopt the closed anti-slip hydraulic drive system composed by imported heavy-load variable pump and motor, ensuring the good driving performance and high gradeability.
Reliable Electrical System
The electrical system adopts imported water-proof, dust-proof, vibration-resistant electric connectors for increased reliability.
Imported maintenance-free battery has high start-up current and good adaptability.
Comprehensive safety protection
The service brake, parking brake, and emergency brake ensure the travel safety.
The ROPS cab guarantees the driver's safety.
Anti-slip handrail and stairs and dapple rubber floor prevent the operator from slipping.
The engine hood supporting system is equipped with safety protection device, ensuring the maintenance technician's safety.
The rotating alarm lamp and reverse buzzer ensure the travel safety.
Excellent maintenance performance
The alarm device on the instrument panel can supply maintenance information at any time, avoiding the equipment damage, and shortening the downtime.
The wide-opening tilt-forward engine hood makes the maintenance parts easy to access to. The independent electrohydraulic supporting system controlled in the cab makes the engine hood stop safely at any height, which is convenient for the maintenance.

Type	Unit	Specifications
Operating weight	kg	12000
Weight on front drum	kg	6700
Static linear load	N/cm	308
Speed range	km/h	0~10.4
Theoretical gradeability	%	45
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±10
Vibration frequency(L/H)	Hz	30/35
Nominal amplitude(H/L)	mm	1.80/0.9
Excitation force(H/L)	kN	290/180
Drum diameter	mm	1523
Drum width	mm	2130
Engine model		Cummins 4B3.9
Type		Water cooled, turbo-charged,air-air intercooling
Rated power @2200r/min	kW	93
