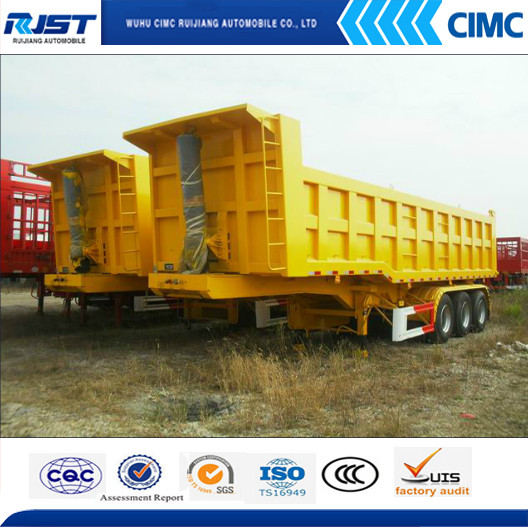

12.6m Tipper Semi-Trailer/Self Dump Semi-Trailer (WL9300ZX)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 22000.0-24000.0/ Piece

Price:$22000.0 - $24000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Apr 18, 2015 To Jul 18, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9300ZX

Type:Semi-Trailer

Load Capacity:50t

Certification:ISO9001, CCC, ISO/TS16949

Wheel Base:7000-8000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

ABS Anti-lock Braking System:No ABS Anti-lock Braking System

Material:Steel

Scale:Heavy Duty

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:in Container or in Nude

Origin:China

Production Capacity:10000 Units Per Year

Product Description

Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 30, 000 units per year.

Please contact us to know more.

3 Axle Dump Truck Semi Trailer
Parameter	Dimension	10000(L)×2480(W)×3090(H)
	Wheel Base (mm)	3400+1300+1300
	Tare weight (KG)	9500
	Loading Weight(kg)	50000
	Bottom beam thickness	4 mm
	Case height	1500
	Case material	Carbon Steel
	Case thickness	450,14/8/16
OEM	Cylinder	Front Lift,HAVA FC214
	Landing gear	Single
	Kingpin	90#,Assembled
	Suspension	Mechanical suspension
	Axle	FUWA axle, 13 ton capacity/set,3sets
	Tire	12 units,11.00R20-16PR
	Rim	12 units,8.0-20
	Fender	Iron material
	Brake system	Domestic
	Circuit system	A full set of domestic lamps and lanterns
