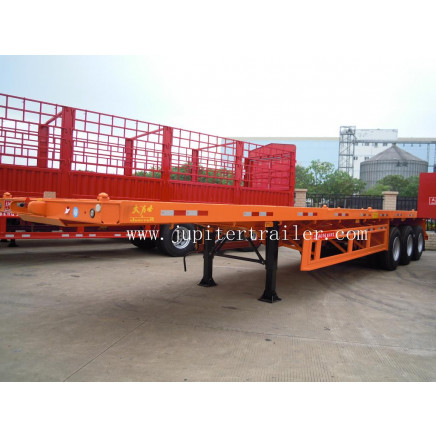

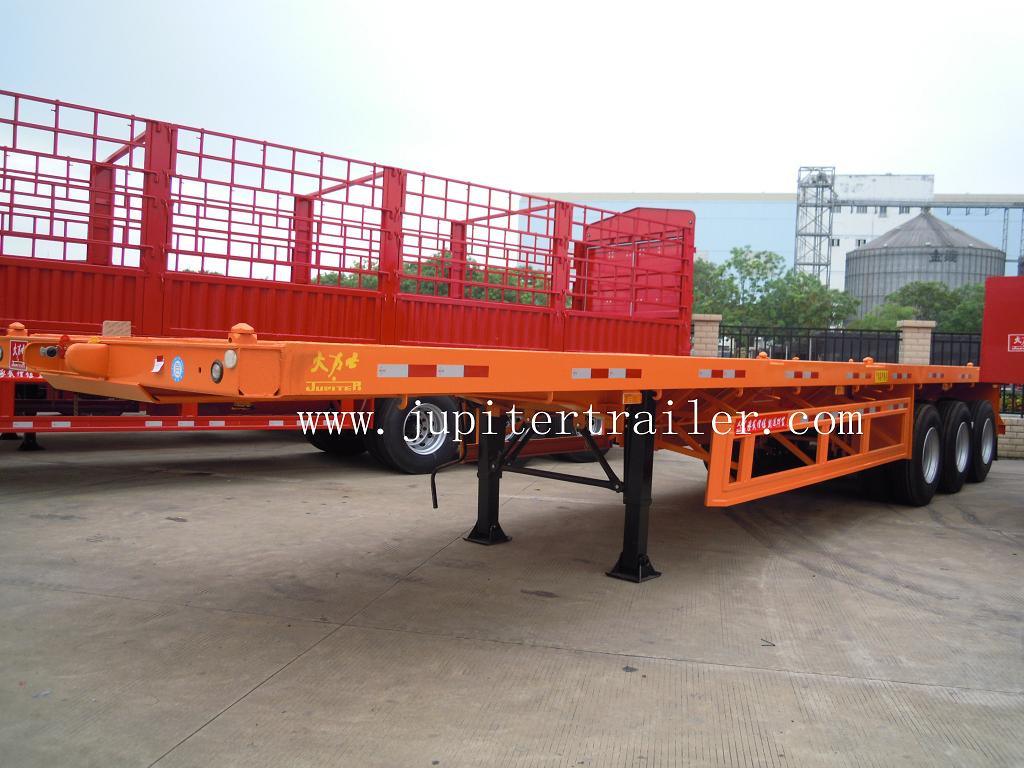

12.4m Tri Axle Flatbed Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000.0-40000.0/ Piece

Price:$20000.0 - $40000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Trademark: JUPITER

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9380TP

Type:Towing Pin

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Size:as Your Requirements

Colour:Option

Use:Container Holding

Custom Made:Available

Export Markets:Global

Additional Info.

Trademark:JUPITER

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

Production Capacity:5000 Units/Year

Product Description

Virtue: Reasonable design, strong baring capacity, simple operation, artistic otlook etc.
The style vehicle also is optional to install the front plate, and optional to insert the sticker etc, to achieve broader usage scope.
Mainly suitable for the transport large-scale bulk cargo, with the container locking device, can also transport the container and canned box.
Dimensions:
Overall dimensions: 12410× 2480× 1480mm
Front overhang: 750mm
King pin setting:
Wheel base: 7, 200 + 1, 310 + 1, 310mm
Loading surface height:
Top flange thickness: 14mm
Middle flange thickness: 8mm
Bottom flange thickness: 16mm
Floor thickness: 3mm
Front fitting radius: Rear tractor clearance radius
Weight:
Tare weight: 7450kg
Max payload: 31, 000kg
Total weigh: 38450kg
Running gear:
Suspension: Fuwa/7-leaf spring
Axles: Fuwa 13
Wheel rim: 8.25 X 22.5 (13 sets)
Tyre: 11R22.5 (13 sets)
Kingpin: JOST 2' bolt-in
Twist lock: Without
Landing gear:
Leg: Fuwa or Jost
Rated capacity:
Front plate &sticker
Air system:
Relay valve: 2 unit of East Star 4 relay valves
ABS: Without
Air tank: 2 units of reliable local brand 48L
Brake chamber: 4 units of T30/30, 2 units of T30
Electrical system:
Voltage: 24V
Receptacle: 7-way socket
Light: LED
Else: Colors, tool box, mudguard, side guard, spare tyre holder
All of the above could be changed according to customers' requirements
As the requirements of the customers' in different Countries are different, we can design for our customers' special need
