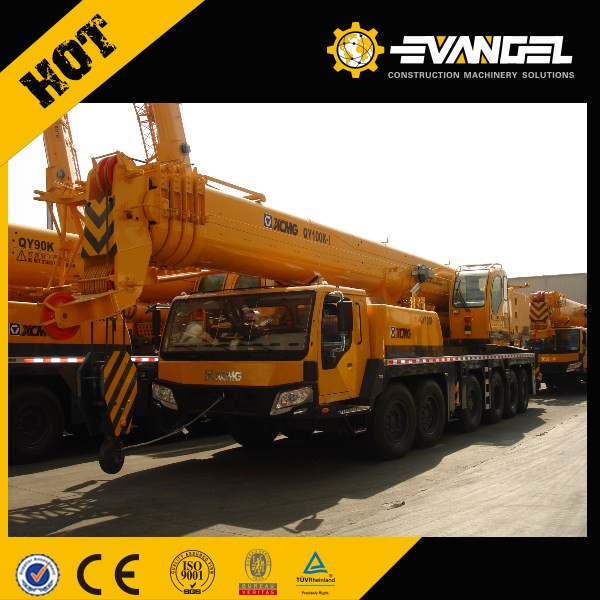

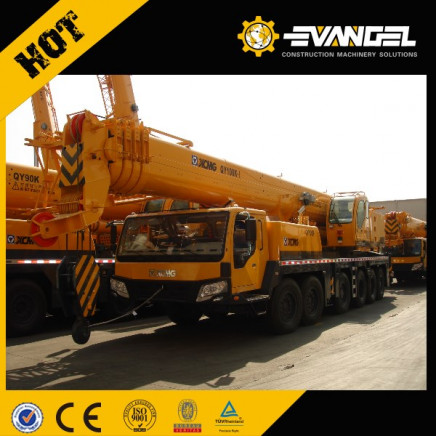

110t Heavy Truck Crane QY110K XCMG Brand

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 245000/ Piece

Price:US $245000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAP, FCA

Payment Terms: L/C, T/T

Price Valid Time:From Nov 23, 2014 To Feb 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY110K

Type:Small Crane

Application:Construction Usage

Power Source:Hydraulic

Certification:ISO9001: 2000

Condition:New

Max. Lifting Load:100t

Max. Lifting Height:57.7m

Max. Travel Speed:80km/H

Max. Gradeability:40%

Rated Lifting Moment:1764kn. M

Engine:Wd615.334

Feature:Hydraulic Crane

Color:Golden Yellow

Overall Dimensions(Lxwxh):13750X2800X3520mm

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Suitable for Ocean Shipment

Standard:CE, ISO Standard

Origin:Jiangsu

HS Code:8426411000

Production Capacity:30 Sets Per Month

Product Description

XCMG QY110K TRUCK CRANE:

The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
The humanity design makes the cab and control cab more spacious, and easy to operate.
Six unique manufacturing technologies ensure the high quality.
The working condition expands twice. Newly add 5 ton counterweight.

Dimension	Unit	QY110K
Overall length	mm	14800/15270
Overall width	mm	3000
Overall height	mm	3920
Weight
Total weight in travel	kg	54900/58000
Front axle load (axle 1, 2, 3)	kg	7500/7500/8300(9000)
Rear axle load (axle 4, 5)	kg	12000(13000)12000(13000)/7600(8000)
Power
Engine model		OM906LA/OM460LA
Engine rated power	kW/(r/min)	162/2100 360/1800
Engine rated torque	N.m/(r/min)	1054/1500 2200/1300
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	300
Approach angle	°	20
Departure angle	°	14
Max. grade ability	%	40
Fuel consumption for 100km	L	75
Main performance
Max. rated total lifting capacity	t	110
Min. rated working radius	m	3
Turning radius at turntable tail	m	4.51
Max. lifting torque	kN.m	4233
Base boom	m	12.8
Fully extended boom	m	58
Fully extended boom+ jib	m	76.1
Longitudinal outrigger span	m	7.56
Lateral outrigger span	m	7.6(5.2)
Working speed
Boom luffing time	s	60
Boom full extension time	s	600
Max. swing speed	r/min	1.9
Max. speed of main winch (single rope) (no load)	m/min	?105
Max. speed of aux. winch (single rope) (no load)	m/min	?105
