11.3M Tri-Axle Dumper Semi-Trailer (FTW9390ZZX)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

11.3M Tri-Axle Dumper Semi-Trailer (FTW9390ZZX)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$21500.0 - $23000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 23000/ Piece
10.0	US $ 21500/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 01, 2015 To Apr 22, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9390ZZX

Type:Axle

Load Capacity:50T

Certification:ISO9001, CCC, SGS

Wheel Base:8000-9000mm

Tread:2240mm

Grade:Light Duty

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Multi-link Type

Connecting Type:Semi-trailer

Shape:Van-type

Axle Number:3

Tire Number:12

Self-dumping:Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Payload:33cbm

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:JUPITER

Packing:Nude

Standard:CCC

Origin:China

HS Code:87163910

Production Capacity:1000 Units/Year

Product Description

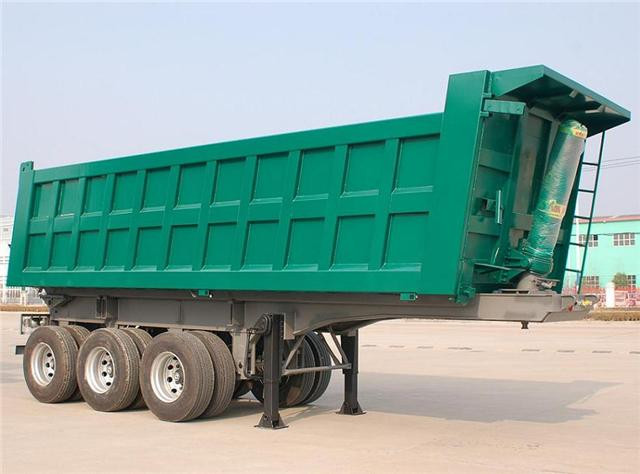

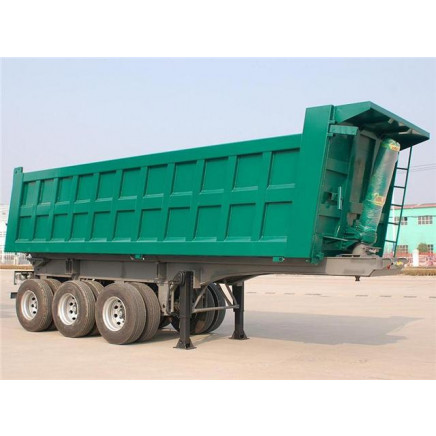

11.3M Tri-Axle Dumper Semi-Trailer (FTW9390ZZX)

Dimensions (mm): 11320*2500*3930
King Pin Setting (mm): 1385
Wheel Span (mm): -/1840/1840/1840
Axle Spacing (mm): 6000+1350+1350
Tare Weight (kg): 11190
Payload (kg): 28000
Max Total Mass (kg): 39190
Main Beams: Q345
Suspension: Under mount three axle suspension with equalizer; 7/8 springs
Electrical System: 24V, 7 way socket
