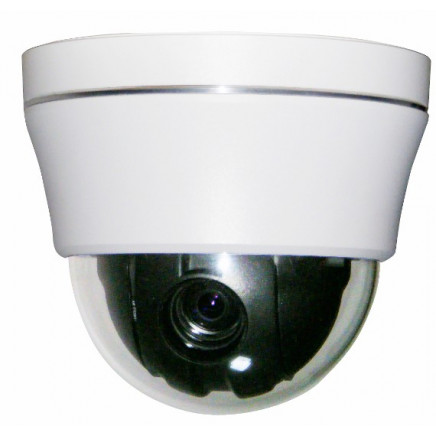

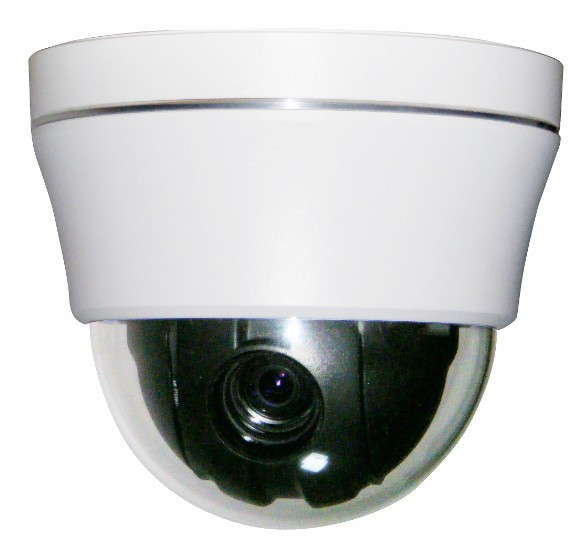

10x CCTV 480tvl Sony CCD PTZ Speed Dome Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:5 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T

Trademark:OEM/TOYANI

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FeX29-10

Type:Dome Camera

Sensor:CCD

Speed:High-speed Dome

Technology:Pan / Tilt / Zoom

Feature:Mini Size

Horizontal Resolution:480tvl

Image Sensor:1/4" Sony CCD

Signal Model:PAL/NTSC

Focus Length:3.8~38.0mm

Optical Focus:10x/100x

Communications:RS-485, Pelco D, Pelco P

Export Markets:Global

Additional Info.

Trademark:OEM/TOYANI

Origin:China

HS Code:8525801390

Production Capacity:5000PCS/Week

Product Description

Feature:

> Mini high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function, defend levels reach to IP66.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.

Model No	FeX29-10
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	480TVL
Effective Pixel	PAL: 752(H)X582(V) NTSC; 768(H)*494(V)
Minimum Illumination	0.05LUX, Color to B/W
S/N Radio	? 50dB(enhanced)
Backlight Compensation	on/off
White Balance	Auto
Electronic Shutter	1/50~1/12000s
Focus Length	3.8~38.0mm
Optical Focus	10X
Focus	Auto/manual, take high-performance DSP to realize complete digital and ultra-high speed focus function
Presets	256
Pattern Track	4groups, each can record 200 actions
Tour Track	8 groups, total 30 presets can join cruise, can setting the presets' residence time
Other Scan	4 groups , support horizontal scan , deuce area scan , scan random
Rotation Range	horizontal 360° unlimited rotation, vertical 90° , auto reversal
Rotation Speed	horizontal & vertical min 0.01, max 200/s
Communications	RS-485, PELCO D, PELCO P
OSD.	Whole screen Chinese/english menu
Special function	AWB, MASK, DNR, Strong light Optimizer, MIRROR
Temperature	Built-in
Power Supply	DC12V/1.5A
Mater	Aluminum shell, water-proof IP66
Work Environment	" -20º C~+50º C (select temperature control accessories), less than 95%RH
