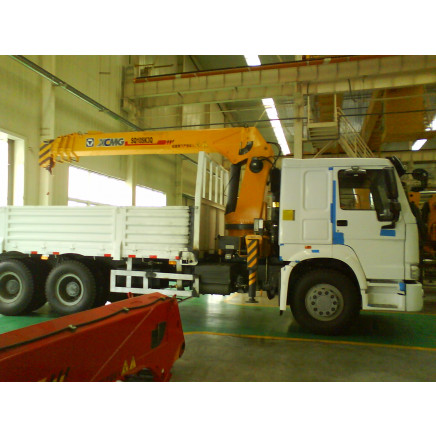

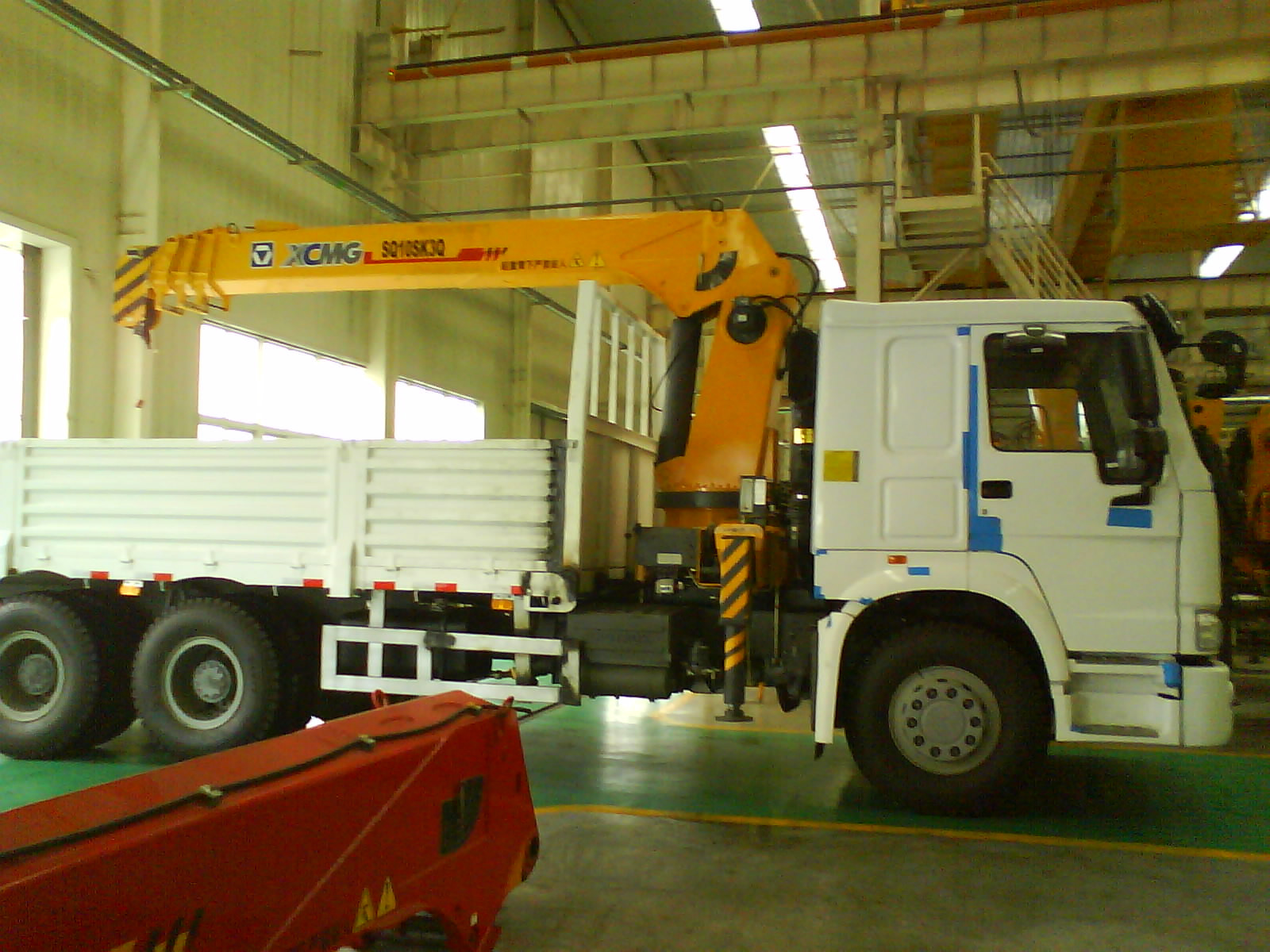

10t XCMG Truck Mounted Crane with Cargo Box

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:XCMG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SQ10SK3Q(LHD)

Type:Small Crane

Tower Crane Type:Under Slewing Cranes

Sling Type:Cable

Main Girder Form:Double Girder

Power Source:Hydraulic

Moving Type:Orbital

Installation:Assembled

Certification:ISO9001: 2000

Condition:New

Material:Steel

Scale:Heavy Duty

Components:Trailer Axles

Load Capacity:30t

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:XCMG

Packing:Nude Packing

Standard:ISO

Origin:Shandong, China.

Production Capacity:100/Month

Product Description

Max lifting capacity: 10000 Kg
Max lifting capacity: 25 T. M
Recommend power: 30 Kw
Max oil flow: 63 L/min
Max pressure; 26 Mpa
Oil Tank Capacity: 160 L
Crane weight: 3800 Kg
Installation space: 1150 mm
Rotation angle; 360 All Rotation degree
Max extension length: 11500mm
Max lifting height: 13000 mm
Max elevation: 75degree

Chassis parameters

ZZ1257M3847C1
Overall size: 8800x2490x3028 mm
Cargo box size: 6200x1326x800 mm
Steel thickness of Carriage: Floor: 3, Side: 1.5 mm
Gross vehicle weight: 25000 kg

Engine power: 213(290) KW(Hp)
Front axle: H79 Rated load 9Ton
Rear axle: HC16 Rated load 13 Ton
Cabin: HW76 with single sleeper and A/C

ITEM	UNITS	SQ10SK3Q(LHD)
Max lifting capacity	Kg	10000
Max lifting capacity	T.M	25
Recommend power	Kw	30
Max oil flow	L/min	63
Max pressure	Mpa	26
Oil Tank Capacity	L	160
Crane weight	Kg	3800
Installation space	mm	1150
Rotation angle	degree	360 All Rotation
Max extension length	mm	11500
Max lifting height	mm	13000
Max elevation	degree	75
Chassis parameters
Item	Units	ZZ1257M3847C1
Overall size	mm	8800x2490x3028
Cargo box size	mm	6200x1326x800
Steel thickness of Carriage	mm	Floor: 3, Side: 1.5
Gross vehicle weight	kg	25000
Engine power	KW(Hp)	213(290)
Front axle	H79 Rated load 9Ton
Rear axle	HC16 Rated load 13 Ton
Cabin	HW76 with single sleeper and A/C
