10000L Dongfeng 4X4 Water Tanker Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

10000L Dongfeng 4X4 Water Tanker Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$30000.0 - $35000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 35000/ Piece
20.0	US $ 32000/ Piece
50.0	US $ 30000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 29, 2015 To Dec 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EQ5162GLJ

Volume:5001 - 10000L

Certification:ISO9000, CCC

Emission Standard:Euro 4

Sprinkling Area:?16m

Transmission Type:Manual

Payload:8t

Fuel:Diesel

Drive Wheel:4X4

Engine Capacity:4 - 6L

Engine Type:4 Stroke

Condition:New

Chassis Brand:Dongfeng

Cabin:Half Row,Left Hand Drive

Wheel Base:4500mm

Cummins Engine:140kw / 190HP

Drive Axle:10t

Gearbox:Fast 8-Speed

Tire:10.00r20

Tanker Capacity:8000L to 12000L

Tanker Thickness:4mm Tank

Tanker Material:Carbon Steel,Stainless Steel

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

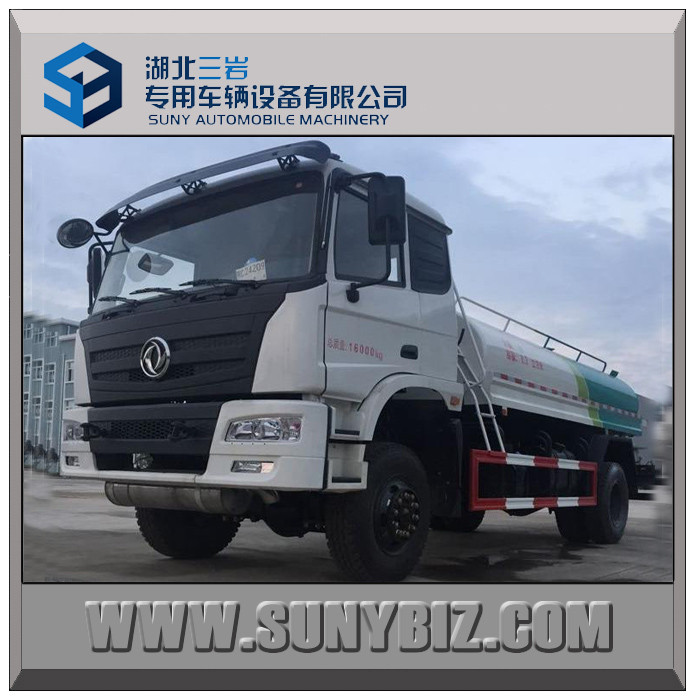

Dongfeng 4x4 Water Tanker Truck
Tanker load 8000L 10000L 12000L
4x4 WATER TRUCK 4WD tanker truck ALL HAND DRIVE TRUCK.
Cummins engine 190hp
10tons Drive axle, 4.5tons front axle,Fast 8-speed gearbox manual.
10.00R20 Tire.

Tanker Material: Carbon steel Q235; Stainless steel SS304 SS316

Products Technical Specification
Brand-Series		Dongfeng
Product Name		4*4 water tanker truck
Chassis Model		EQ5162GLJ
Emission Standard		Euro 4
Fuel type		Diesel
Cabin		Half row
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	850024703040
	Tank dimensions	480020501250
	Wheel base	4500
	Front overhang	1250
	Rear overhang	2090
	Min. ground clearance	495
Weight data (kg)	G.V.W	16000
	Curb weight (chassis)	7900
	Max payload	8000 ~ 12000
Whole vehicle main performance	Max. speed (km/h)	88
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	ISB190 40
	Maximum power	140kw / 190hp
	Number of cylinders	6
	Displacement (L)	5.9
	Engine Manufacturer	Dongfeng cummins Engine Co., Ltd.
Transmission	Model	FAST
Transmission	Number of gears	8 forward gears& 1 reverse
Axle	Rear Load capacity (ton)	10T
Suspension	Leaf spring	9/11+8
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking With ABS
Electric device	Rated voltage	24V
Tyres & Quantity		10.00R20 & 6+1
Tank Description
Tank capacity		8000L 10000L 12000L
Tank dimensions(mm)		428020301250
Tank Description		Shape: Square Material: carbon steel Thickness: 4mm / 5mm
Standard Equipment		Equipped with front(rear, side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with Wei Long pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauzeequipped with self-flow valve,Fire coupling and self-priming pump with capacity of 60 cubic meters mph

Other water tank trucks:

Drive Type	Tank capacity
4x2 4x4	1000L ~ 18000L
6x2 6x4 6x4	18000L ~ 25000L
8x2 8x4 8x8	26000L ~ 30000L
water tank trailer	30000L ~ 60000L
Many Chassis brands: Dongfeng,FOTON,FORLAND,FAW,SHACMAN,SINOTRUK,Beiben, IVECO HONGYAN,JAC,JMC,ISUZU,YUEJIN,KAMA,KARRY,T-KING, JINBEI,HINO,UD,etc.

We also have many brands of chassis
eg:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-ISUZU 100P-600P-700P
-HINO 700
-UD
-C&C
-CAMC
................,etc.

If you have any questions please let Adam Li know!!!
