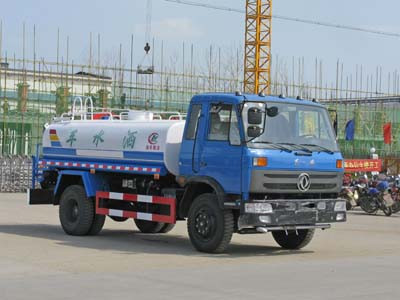

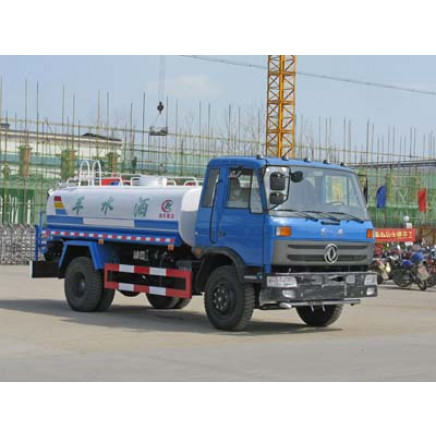

10000 liter Water Transportation Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 19000.0-24000.0/ Piece

Price:$19000.0 - $24000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 29, 2014 To Jan 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HW

Volume:10000-20000L

Certification:ISO9000

Emission Standard:Euro III

Sprinkling Area:12 - 16m

Payload:10t

Fuel:Diesel

Drive Wheel:4×2

Engine Capacity:6 - 8L

Engine Type:2 Stroke

Condition:New

Engine Brand:Cummins

Type:Watering Cart

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Hua-Win

Packing:Nude

Standard:4*2

Origin:China

Production Capacity:100 Sets

Product Description

10000 liter Water Transportation Truck

Cabin Driving type 4x2 RHD
Dongfeng 153 cab, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main DimensionsOverall dimensions (L x W x H)mm 7700×2490×3200
Wheel base (mm) 3950
Wheel track (front/rear) (mm) 1900/1800
Weight in KGSTare Weight 6000
payload 10000
Front axles loading capacity 1x6000
Rear axles loading capacity 1x10000
Max. driving speed(km/h) 90
Engine Brand Cummins
ModelB 170 33
Type4-stroke direct injection , 6-cylinder in-line , turbo-charging and inter-cooling
Horse Power(HP) 170 HP
Emission standard Euro III
Gearbox 6 Forwards gear & 1 reverse gear
Steering power steering
Tire 9.00-20 bias tyre
Tank Specifications
1, 10 cbm tank made of Q345 steel, body 4 mm and end plate 5 mm in thickness.
2, Equipped with front(rear, side)sprinkler(sprinkling width>14m )
3,Equipped with rear working platform with water cannon (range>28m)
4, Equipped with pump(suction lift>6m)
5, Equipped with fire plug
Production cycle 25 days

Commodity	DongFeng 1208 Water Truck
Chassis	EQ1258KB3GJ
Cubage (T)	18-22
Vehicle	Overall dimension(length/width/height)mm	9950*2490×3350
	G V W(kg)	25000
	Payload (kg)	15800
	Kerb mass(kg)	9005
	Approach/Departure Angle(°)	28/10
	Front/Rear Suspension (mm)	1245/3005
	Fuel Type	Diesel
	Fuel consumption(L/100km)	24
	Max speed	85
Engine	Model	B220 30
	Exhaust/Power(kw)	5900/162
	Manufacturer	Dongfeng Cummins Engine Co., Ltd
	Type	6-in-line
Chassis	Drive type	6*4
	Wheelbase (mm)	4350+1300
	Tread(front/rear)mm	1940/1860
	Front axle	5 Ton
	Rear axle	Double 10 Ton
	Transmission	Six forward gear, one reverse gear, mechanical transmission
	Clutch	Uniwafer, dry diaphragm spring clutch
	Brake system	Brake fluid system, drum brake Chose to fix air braking.
	Cab	Non-longhead. One and half row
	Number of spring axles(front/rear)	8/13
	Tire specification	10.00-20
	Air condition	Chose to fix
Water system performance	Water pump	Self- priming centrifugal pump
	Water width	?15
	Water gun range	?28
	Vertical suction range	?7
	Pressure	250-450KPa
	Watering speed	0.2-2(l/m2)
	Pump lift	90m
	Suction time	<5min
	Flow	60 m3/h
