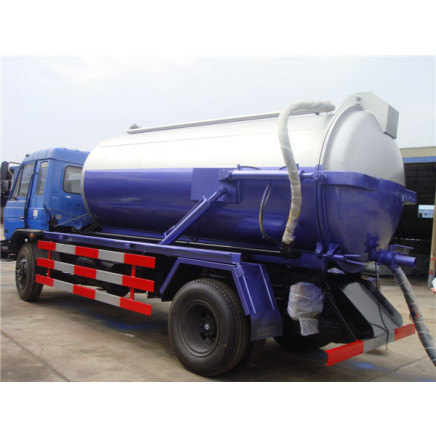

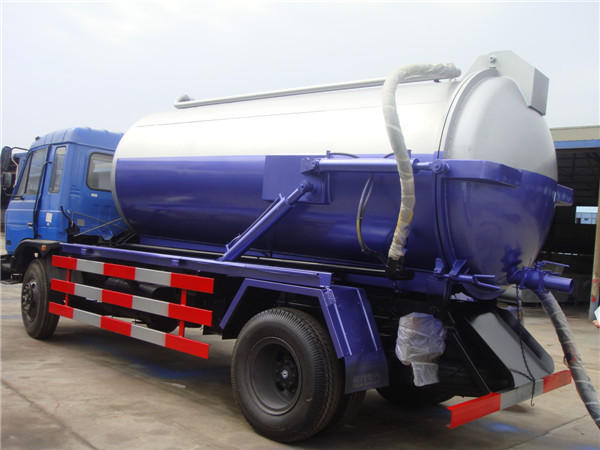

10 Cubic Meter Dongfeng Chassis Vacuum Sewage Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-50000.0/ Piece

Price:$30000.0 - $50000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 21, 2015 To Jul 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Certification:ISO9000, TS16949

Emission Standard:Euro 3

Payload:6695kg

Transmission Type:Manual

Fuel:Diesel

Engine Type:4 Stroke

Tank Volume:10000L

Drive Wheel:4x2

Hoesrpower:150-250hp

Condition:New

Overall Dimensions L*W*H(Mm):7500*2470*3200

Engine Model:B190 33

Power:140kw/190HP

Displacement(Ml):5900

Chassis Brand:Dongfeng

Tank Shape:Cylindrical

Tank Material:5mm Thick Carbon Steel

Suction Depth(M):More Than 6 Meter

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:SLCM

Packing:Nude Packing

Standard:ccc

Origin:Shandong

Production Capacity:200uits Per Month

Product Description

Tank capacity:10000L,Power:190hp,wheelbase:4500mm,chassis brand:dongfeng

Spec:

Items	Descriptions	Specifications and Types
General	Truck Name	Sewage suction truck
	Drive Type	4*2
	Gross Vehicle Weight(kg)	14490
	Curb Weight (kg)	6695
	Overall Dimensions LWH(mm)	7500×2470×3200
Engine	Engine Model	B190 33
	Fuel Type	Diesel
	Power	140kw/190HP
	Emission Standard	Euro III
	Displacement(ml)	5900
	Engine Type	6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis	Chassis Brand	Dongfeng
	Front/Rear Axle Load(KG)	5450/9040
	Tire No.	6
	Tire Specification	10.00-20 Steel tire
	Wheelbase (mm)	4500
	Axle No.	2
	Gear Box	6 speed forward with 1 reverse, manual
	Steering Wheel	left hand drive
	Brake	Air brake
	Radiator	Suitable for tropical climate
Sucking System	Tank Volume(L)	10000
	Tank shape	Cylindrical
	Tank Material	5mm thick carbon steel
	Vacuum Pump	Double Weilong pump
	Suction Depth(m)	More than 6 meter
	Tank Tipping angle(°)	More than 45
	Rear door	Open and closed by hydraulic cylinders

Sewage suction truck / vacuum truck,is mainly used for the pumping, transporting and draining of sludge and waste oil in sewers, catch basion, sewer man-hole, sepic tanks and sediments of sludge pool in chemical plants. sewage suction truck is composed of power take-off, trransmission shaft, vacuum sewage suction pump, pressure tanker, hydraulic system, pipe network system, equipped with vacuum pressure gauge, liquid indicator, hand-washing device.
