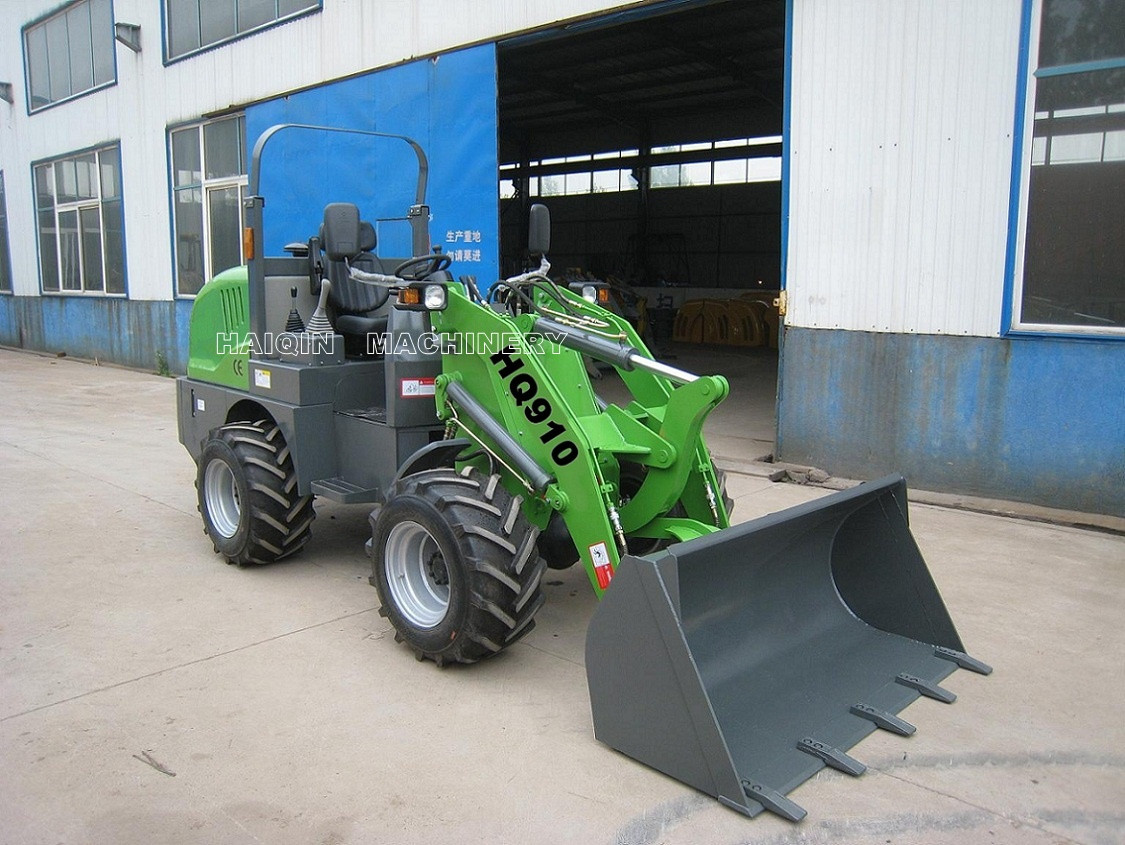

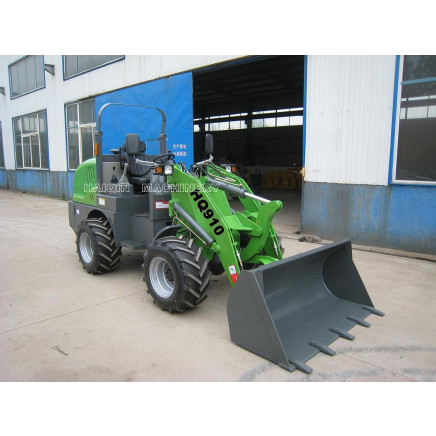

1.0 Ton 4WD Hydraulic Earth Mover (HQ910)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8500.0-11000.0/ Piece

Price:$8500.0 - $11000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 08, 2015 To Oct 22, 2019

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910

Type:Small Loader

Usage:Universal Type

Scraper Type:Front End Shovel

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:32.4kw

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Color:According to Customers Requirments

Engine:Euro III Engine

Certificate:CE

Operating Weight:2750kg

Warranty:1 Year

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Container

Standard:CE, ISO, SGS

Origin:China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

1t wheel loader specifications:

Dimension(L× W× H): 4450/1430/2470
Rated loading weight( KG): 1.0
Operating weight ( kg): 2910
Max drawing force (kn) 35
Min. Ground clearance: 230 mm
Turning angle: Left and right, 35 degree
Min turing redius: 3750 mm

Speed, (km/h):
Forward 1 0-7.5
Forward 2 0-24
Back 1 0-7.5
Back 2 0-24

Engine model: XINCHAI EURO III 490BPG
Power of engine (kw/ r/min): 32.4/2400
Cylinder: 4/108/125
Rated bucket capacity (m3): 0.54.
Three times: (S) 9
Dump height fully raised (mm): 2420
Reach fully raised (mm): 850
Tyre model: 10-12.5 / 12-16.5 / 31*15.5-15
Tyre width (mm): 270 / 300 / 380 mm
Track base (mm): 1160
Wheel base (mm): 1710

Specifications of HQ910 Mini Loader
Item	Specifications	Item	Specifications
Rated loading weight	1000kg	Operating weight	2690kg
Rated bucket capacity	0.54-0.7m 3	Overall dimensions(LxWxH)	4450x1430x2370(2590)mm
Bucket width	1500mm	Engine model	XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )
Track base	1160mm	Engine type	In-line arrangement, water cooled, four-cycle diesel engine
Wheel base	1710mm	Engine starting mode	Electric
Min. turning radius(outside of rear wheels)	3750mm	Rated power/Rated speed	32.4KW/2400rpm
Min. Ground clearance	230mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Dump height fully raised	2420mm	Warranty	15 months
Dump height fully raised	2420mm	Warranty
Reach fully raised	850mm	Color	According to the requirements of customers
Lifting time + Dumping time + Lowering time	9S	Tyre type	12-16.5 or 3115.515 wide tyre
Steering angle	35 degree	Shipping port	Qingdao port, China
Max. Breakout Force	35KN	Packing details	1 unit in a 20 container, 3 units in a 40 container.
Driving mode	Four-wheel drive	Delivery time	20 days after confirm the order
OEM Service	Yes
