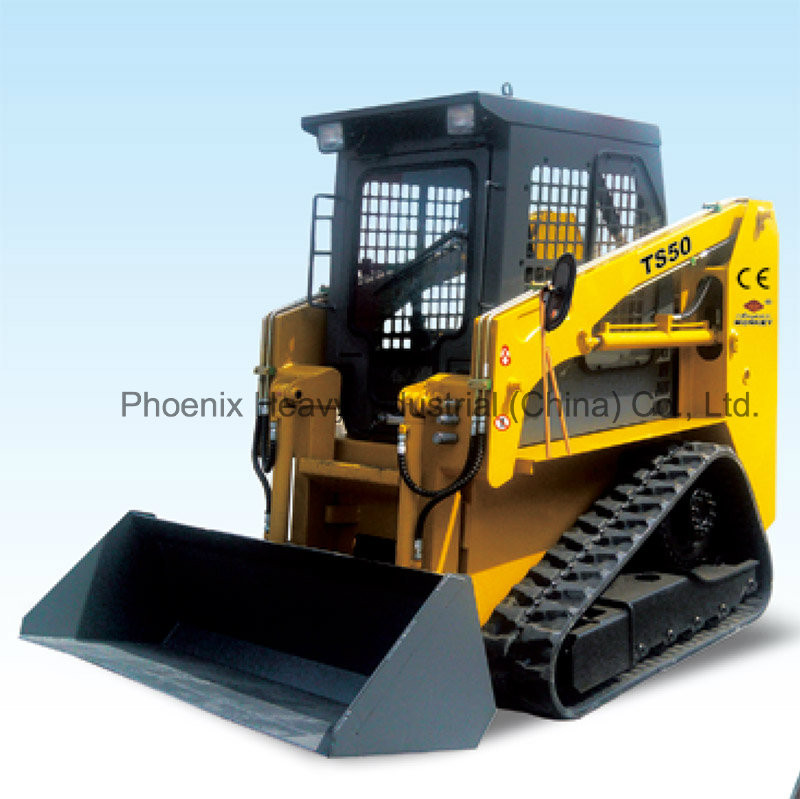

0.7ton Crawler Small Skid Steer Loaders with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$20500.0 - $22000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 22000/ Piece
10.0	US $ 20500/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From May 20, 2015 To Aug 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TS50

Type:Skid Steer Loader

Usage:Universal Type

Scraper Type:Tractor-Scraper

Transmission:Hydraulic Transmission

Walking Mode:Crawler

Load and Unload Method:Front Discharge

Engine Power:<74kw

Certification:CE

Condition:New

Color:Yellow

Rated Load:700 Kg

Tipping Load:1400kg

Bucket Capacity:0.3m3

Rated Power:40HP

Export Markets:Global

Additional Info.

Trademark:PHOENIX

Packing:Nude Packing

Standard:CE

Origin:China Mainland

HS Code:84295100

Production Capacity:1000 Units/Month

Product Description

Features:
L Compact structure, maneuverable movement suitable for narrow space operation
L Close cabin with joystick control system
L Double accelerograph control
L Auto-leveling system
L Multi-function with a wide range of attachments
L Hydraulic brake
Standard configuration:
1. Chinese YTO brand engine
2. Italy BP hydraulic pump
3. Chinese hydraulic motor
4. Hydraulic control system
5. Close cabin
6. Hydraulic brake
7. Hydraulic self-leveling system
8. Bobcat type quick coupler

We can provide all kinds of attachments whatever you want for skid steer loader.

Rated Operating Capacity (Kg)	700
Tipping load (Kg)	1400
Bucket Capacity (m3)	0.3
Lifting force (kg)	1950
Hydraulic Pump Flow (L/min)	40
Engine power (HP)	40
Weight (Kg)	2800
Max. Travel Speed (km/h)	8
Grade ability (°)	20
Fuel hyd. Oil capacity (L)	50/50
Dimensions
A. Height to top of ROPS	2050mm
B. Ground clearance	140mm
C. Max. lift height	3350mm
D. Hinge Pin Height	2770mm
E. Length of undercarriage	1600mm
F. Machine length without bucket	2300mm
G. Machine length with bucket	2950mm
H. Machine width	1500mm
I. Tack width	300mm
L. Dumping Height	2100mm
K. Length of track on ground	1240mm
