Product Description

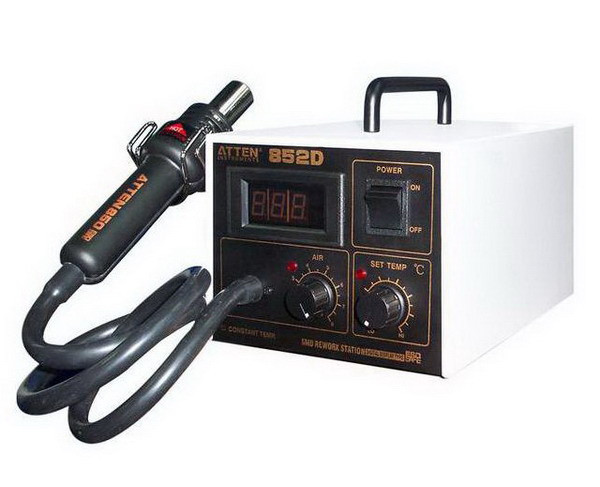

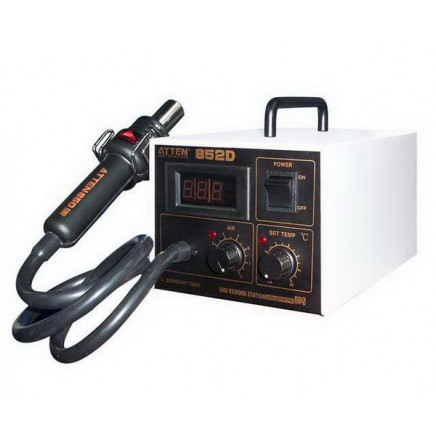

Product Name: Soldering Station Series-850 Rework Station (AT852D)
Model No: AT852D

Specifications:

Power: 110/220V AC
Input Frequency: 50/60Hz
Power Consumption: 280WFan: Soft whirlwind
Capacity: 23L/min(hightest)
Hot Air Temperature: 100º C~480º COuter
Dimensions: 187(W)*135(H)*245(D)mm
Weight: 4.5Kg

Function:

1. Temperature rapidly rise and adjust conveniently, temperature digital display.

2. The temperature is very accurate and reliable, will not affect by air blowing.

3. Perfect stand-by function, when the handle is placed on the handle shelf, now the system is on stand-by state, No matter in what location of wind establishes, will blown out breezy to makes the life longer. When get up handle will be on stand-by state.

4. Anti-static design, prevent static electricity or the electric leakage form PCB damage.

5. Untouched soldering mode, avoid components shifting and thermal shock.

6. The air flow and the temperature can be adjust greatly and it can solder or de-solder the QFP and SOP, PLCC, BGA type IC.

7. Use the import heating element, the spray nozzle is in line with international standards.

8. It uses the good-quality and high-speed motor to produce cyclostrophic wind, make the heat uniform distribution and has big dynamic range of the thermal power.

9. Blow cooling system automatically after shut down equipment; Prolong the service life of machine.
