30W LED power supply

More Views

Be the first to review this product

More than 10 available

Availability: In stock

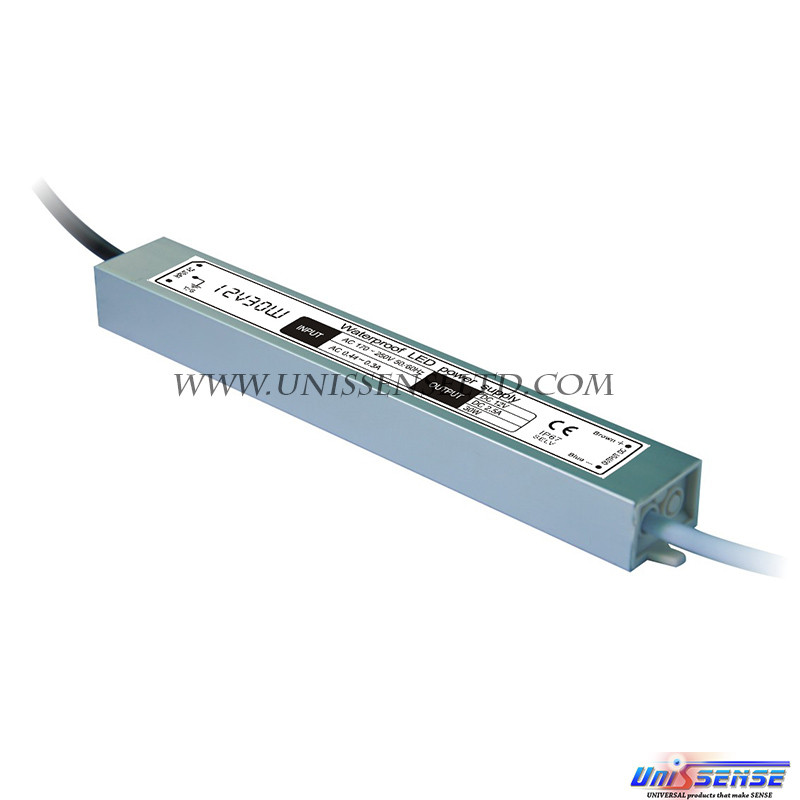

Product Name: 30W waterproof led power supply
Model: JLV-12030KA JLV-24030KA
Input voltage: 170~250VAC
Input frequency: 47~63Hz
Rated output voltage: DC12V/24V
Rated output current: 2.5A/1.25A
Rated DC output power: 30W (100% full loading acceptable)
Waterproof rate: IP67
Dimension(mm): 180*33*23mm
Net Weight: 0.22KG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Features:

1. Real 30W output, designed for 100% full loading constantly

2. aluminium housing, 100% waterproof, IP 67

3. 100% full load burn-in tested

4. Overload / short circuit protection

5. Universal input voltage (100V-250VAC)

6. Plug is available

7. OEM is acceptable

Specification

Product Name	30W waterproof led power supply
Model	JLV-12030KA JLV-24030KA
Input voltage	100~250VAC
Input frequency	47~63Hz
Rated output voltage	DC12V/24V
Rated output current	2.5A/1.25A
Rated DC output power	30W (100% full loading acceptable)
Conversion efficiency	>83%
Ripple noise	<100mV
Line regulation	<1%
Input-output Withstand Voltage (Hi-pot)	3750VAC/1min Drain Current <5mA
Load regulation	<1%
Waterproof rate	IP67
Working temperature	-30~+50 degree Celsius
Net Weight	0.22KG
Dimension(mm):	1803323mm
