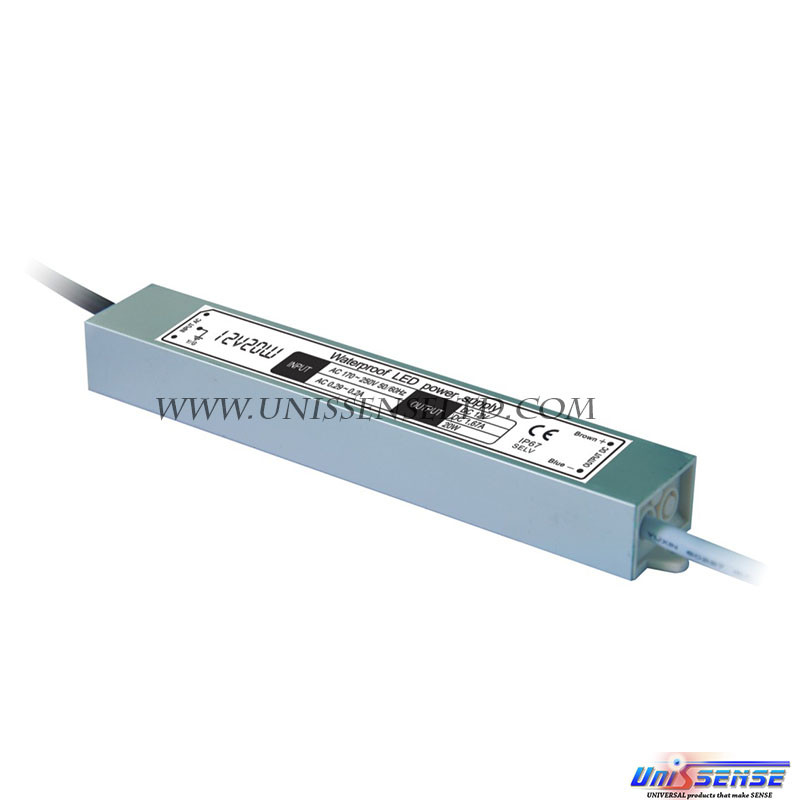

20W LED power supply

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Product Name: 20W waterproof led power supply
Model: JLV-12020P JLV-24020P
Input voltage: 170~250VAC
Input frequency: 47~63Hz
Rated output voltage: DC12V/24V
Rated output current: 1.7A/0.85A
Rated DC output power: 20W (100% full loading acceptable)
Waterproof rate: IP67
Dimension(mm): 204*26*27mm
Net Weight: 0.2KG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

20W waterproof led power supply

1. Real 15W output, designed for 100% full loading constantly

2. Aluminium housing, 100% waterproof, IP 67

3. 100% full load burn-in tested

4. Overload / short circuit protection

5. Plug is available

6. OEM is acceptable

7. Ultra slim size

Features:

1. Real 20W output, designed for 100% full loading constantly

2. Plastic housing, 100% waterproof, IP 67

3. 100% full load burn-in tested

4. Overload / short circuit protection

5. Plug is available

6. OEM is acceptable

7. Ultra slim size

Specification

Product Name	20W waterproof led power supply
Model	JLV-12020P JLV-24020P
Input voltage	170~250VAC
Input frequency	47~63Hz
Rated output voltage	DC12V/24V
Rated output current	1.7A/0.85A
Rated DC output power	20W (100% full loading acceptable)
Conversion efficiency	>80%
Ripple noise	<100mV
Line regulation	<1%
Input-output Withstand Voltage (Hi-pot)	3750VAC/1min Drain Current <5mA
Load regulation	<1%
Waterproof rate	IP67
Working temperature	-30~+50 degree Celsius
Net Weight	0.2KG
Dimension(mm):	2042627mm
