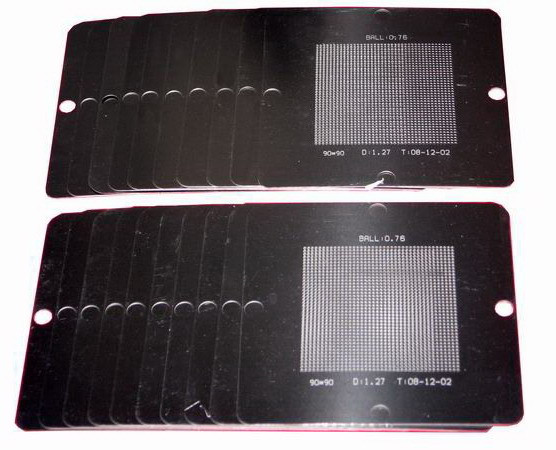

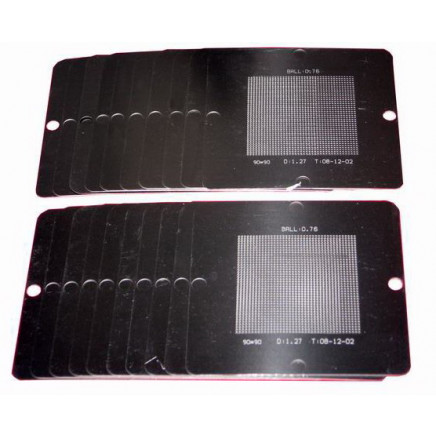

Size: 90 x 90mm

Thickness: 0.3mm

Weight: 17.7g/pc

Material: # 304 Stainless Steel

Stencils use 0.3mm solder balls:
1. AM82801IUX?Laptop new intel chip?
2. 0.3mm Universal Stencil

Stencils use 0.35mm solder balls:
1. Intel: AC82GS45 SLB92 E26593 (Laptop new intel northbridge)
2. Intel: AF82US15W SLGFQ (Laptop new intel northbridge)
3. Intel: AC80566/533 (Laptop new intel CPU)
4. Intel: BD82HM55 (Laptop new intel northbridge)
5. 0.35mm Universal Stencil

Stencils use 0.4mm solder balls:
1. Intel: BD82P55 (Laptop new intel northbridge)
2. 0.4mm Universal Stencil

Stencils use 0.45mm solder balls:
1. DDR1
2. DDR2
3. DDR3
4. Intel: AC82GM45//82PM45//82GL40//AC88CTPM
5. Intel: AC82P45//AC82P43
6. CG82NM10 (Laptop new Southbridge)
7. 0.45mm Universal Stencil

Stencils use 0.5mm solder balls:
1. ATI 1100//1150//AMD ATI 216MQA6AVA12FG 038SSP 0738SSP RS690M
2. ATI 21515//216-0707011//M72-S//M82-S//ATI0909SSP//216-0707001
3. ATI 21514//216PVAVA12FG//215CDABKA15FG//M64-M//M74-M
4. ATI 700M //ATI200M//RC415MD//RC415M/216DCP5ALA11FG
5. ATI 216-0708020//216-0728018//ATI HD4570 VGA Universal
6. ATI 215-0308003//215-0708003//0803SSP Universal
7. ATI RS800ME//RS600ME
8. ATI IXP600//SB600
9. ATI SB700//RD780
10. ATI 215-0719090
11. ATI 215-0669065
12. ATI 218-0697010
13. ATI 215-0758000
14. ATI 215-0735003
15. ATI IXP460
16. ATI X1300
17. NV MCP67MV-A2//MCP77MV-A2
18. NV MCP7A-P-B1
19. NV NF-6100-N//8200//8400//8600
20. NV NF-200-SLI-A2//BR04-300-A2
21. NV NF-680I-SLI-N-A2
22. NV NF-7150-630I-A2
23. NV GFGO7200//7300//7400-N-A3//6200AGP//G86-630-A2
24. NV GF104-325-A1
25. NV G96-600-A1//GT215-450-A2
26. NV G200-103-B1
27. NV G94-300-A1
28. NV BR03-N-A3
29. Intel: LE82965//82P965//82P31
30. Intel: QG82945P//82945GC
31. Intel: QG945GM//QG945PM
32. Intel: LE82PM965//GM965
33. Intel: QG82945GMS
34. Intel: QG82915GMS
35. Intel: CPU:N475
36. VIA MSP II
37. 0.5mm Universal Stencil

Stencils use 0.55mm solder balls:
1. NV GO6200//7200//7300//7400//G84-303-A2//G86-771-A2

Stencils use 0.6mm solder balls:
1. NV GO6200//7200//7300//7400//G84-303-A2//G86-771-A2
2. NV NF-G6150-N-A2//NF-6100-A2
3. NV NF430-N-A3//NF-410-N-A3
4. NV 6800LE//FX5900
5. NV NF4-N-A3//NF4-A3
6. NV NF550//NF570
7. NV GO6800-B1
8. NV G80-100-K1
9. NV NF-GO150
10. NV FGO5200
11. NV GO5200
12. NV 4200GO
13. NV MX440
14. NV HSI-A4
15. NV NF250
16. NV FX5700
17. NV 420GO
18. ATI X1600//RV516//X1300//X700//X1400/X1700
19. ATI 9000 64M//M9-CSP64//216T9NGBGA13FHG
20. ATI 200M//RS480M//216MPA4AKA22//M64-P
21. ATI RC410MB//ATI200 M
22. ATI 7500//9000//CSP-32
23. ATI IXP400//IXP450
24. ATI 9200//9600//9700//X300//X600
25. ATI R480
26. ATI R360
27. ATI 9000IGP
28. ATI 9100 IGP
29. ATI M6-C16
30. ATI X1800
31. ATI 9600-T2
32. ATI 218BAPAGA12F
33. ATI 215-0718020
34. ATI 215RGMDKA13FG
35. VIA CN896//VN896//P4M900
36. VIA K8M890
37. VIA CX700M
38. VIA VT8235M
39. VIA VT8237A//VT8237//VT8235
40. VIA VT8237R
41. VIA VT8237S 0.6mm
42. VIA VX700 0.6mm
43. VIA PN800
44. SIS 671//SIS671DX
45. SIS M661MX M661GX
46. SIS 964L
47. SIS 965L
48. SIS 968
49. SIS 648FX
50. SIS 756
51. SIS 662
52. SIS 655FX
53. Intel: N270-1.60GHZ/512/533 N270//SLB73//AU80586GE025D
54. Intel: 82801GBM//82801GR//82801GB//NH82801GHM
55. Intel: 82801HBM//82801IBM//NH82801HEM
56. Intel: 82801IB//82801IR//82801IO
57. Intel: 82801FBM
58. Intel: 82801HB
59. Intel: 82801BA
60. Intel: AC82X38
61. Intel: AC82X58
62. Intel: QG82915P //NG82915G
63. Intel: QG82915PM//GM
64. Intel: RG82865PE
65. Intel: QG500P
66. Intel: 775CPU
67. 1828-0206//1825-0206//1825-0220
68. DCM56639/BCM56639
69. CIZBZ0003716
70. 307/307ELV
71. M1697-AIB
72. M1573 A1
73. MT5363
74. MT5388
75. 0.6mm Universal Stencil (pitch=1.0mm)
76. 0.6mm Universal Stencil (pitch=0.9mm)
77. 0.6mm Universal Stencil (pitch=1.1mm)

Stencils use 0.76mm solder balls:
1. Intel: M1671
2. Intel: 845GL//845GV
3. Intel: 855GME//855GM
4. Intel: 82801DBM//82801DB
5. Intel: RG845MP//855PM
6. Intel: 82801EB
7. Intel: 82801AA
8. Intel: 478
9. Intel: 479//LE80539//SL6F5
10. Intel: FW82815EP
11. Intel: RG82875
12. Intel: 754CPU
13. ATI 216PS2BFA22H//320M/330M/340M/345M Universal
14. ATI AMD SOKET SI CPU
15. ATI IXP150
16. SIS 630E//SIS630
17. SIS 630S
18. SIS 760LV
19. SIS 650
20. SIS 962
21. VIA VT82C686B
22. VIA K8M800
23. VIA VT82C694X
24. VIA K8T800
25. VIA VN800
26. VIA P4M800
27. MCP8245
28. BCM53242
29. PN133T
30. M1535+
31. 0.76mm Universal Stencil (pitch =1.27mm)

XBOX, PS3, WII Stencils:
1. XBOX 360 GPU
2. XBOX 360 CPU
3. XBOX 360 CSP
4. XBOX 360 HANA
5. PS3 GPU
6. PS3 CPU (New model)
7. PS3 CPU (Old model)
8. PS3 CXR714120
9. PS3 CXD2964GB
10. PS3 CXD2973GB
11. WII GPU (New model)
12. WII GPU (Old model)
13. WII CPU (New model)
14. WII CPU (Old model)
15. CXD2949CGB
16. CXD9799GP
17. CXD9833GB
18. CXD2980BGB
19. CXD9209GB
20. CXD2976GB
21. CXD2992GB
22. CXDT203-15
