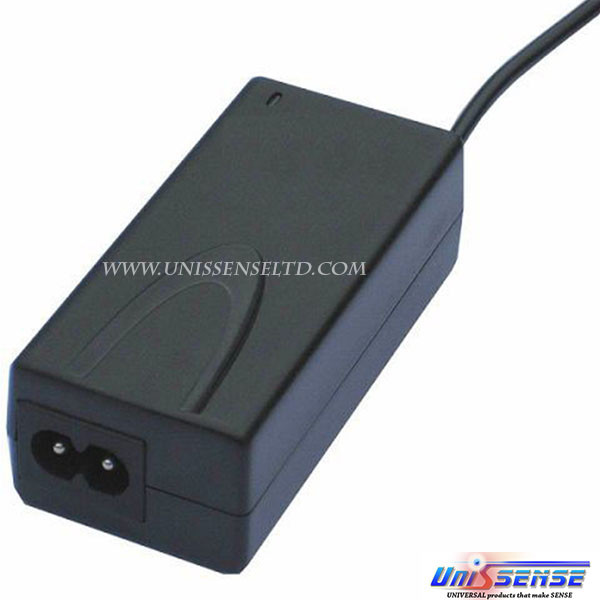

12v 2a power supply

Model

PS-006

Input voltage

90~264 VAC

Input frequency

50~60Hz

Input current

0.6A Max.

Safety ground leakage current

0.25mA Max.

Output power range

24W Max.

Ripple

1% peak to peak maximum

Over voltage protection

Yes. Protected by Zener diode

Over current protection

Yes. Auto-recovery'
Standard series: rated output current >110% for primary-referenced direct drive
(constant current series: rated output current 80~200% for secindary-referenced direct drive)

Short circuit protection

Yes. Hiccup mode. Auto-recovercy

Operating tmperature

-20℃ ~ 30℃

Storage temperature

-20℃ ~ 85℃

Relative humidity

5% to 95% non-condensing

Setup up / hold up / rise time

Typical: 3000mS / 50mS / 16mS at full load

Line reglation

±1% maximum for any input voltage change between input voltage range

Load regulation

Typical + 5% variations from minimum  to maximum output current

Insulation resistance

50Mohm minimum from input to ground

Inrush current

30 AMPS @ 240 VAC at 25℃ cold start

Withstand voltage

4242VDC from input to output

Mean time between failure

100,000 hours minimum at full load at 25℃ambient

Safety requirements

CE

Warranty

2 years

Output voltage

5.0-7.0V 10.5-16.0V 16.5-24.0V 36.0-48.0V

output currency

0.01-2.0A 0.01-2.0A 0.01-1.45A 0.01-0.66A
